AI-created editorial scene: plan the aquarium, cabinet and service space together; not an FX6 product photo, operating installation or filtration test.
The Fluval FX6 is a large external canister filter to consider when a substantial aquarium needs its media capacity and you can accommodate its hoses, placement and maintenance. Do not choose it from the “up to 400 gallons” rating alone: tank layout, livestock, flow and access all affect the decision.
Start with the aquarium’s needs and the cabinet, rather than assuming a larger pump is automatically the better purchase. The FX6 can be a poor fit when the space is cramped, the required outlet flow is unsuitable or routine servicing would be difficult.
Read the Fluval FX6 numbers correctly
Fluval’s US FX6 specifications identify model A219 and distinguish pump output from filter circulation. The published pump output is 925 US gallons per hour; the filter-circulation figure is 563 US gallons per hour. Those numbers describe different manufacturer specifications; keep them separate when comparing filters.
The current manual adds an important condition: its flow measurements use equal-length intake and output hoses without media or in-tank inlet/outlet accessories. The circulation figure therefore is not a guaranteed measurement of your installed, loaded filter. Hose routing, accessories and the actual condition of the system remain relevant.
| US FX6 specification | Manufacturer figure | How to use it |
|---|---|---|
| Aquarium rating | Up to 400 US gallons / 1,500 liters | A category rating, not universal stocking approval |
| Pump output | 925 US GPH / 3,500 LPH | Do not present it as installed filtered flow |
| Filter circulation | 563 US GPH / 2,130 LPH | Read with the manual’s test conditions |
| Biological media volume | 1.5 US gallons / 5.9 liters | Media capacity, not a biological-load guarantee |
| Power | 43 W at 120 V / 60 Hz | Confirm the actual unit’s electrical rating |
These are manufacturer data, not independently verified measurements from a household aquarium. No single flow-to-volume ratio establishes suitability for every species, stocking level or aquarium arrangement. If you are uncertain about your fish’s flow needs, identify those needs before buying a pump on its headline number.
Measure the cabinet and hose route
The US product page lists the canister at 15.75 × 15.75 × 20.8 inches. Allow room beyond the body for valves, hose bends and access. A cabinet opening that admits the canister does not prove there is enough space to connect it or remove parts for service.
The current FX-series manual describes a gravity-fed arrangement and explicitly says never to install the filter above the aquarium water level. Its installation diagram sets specific vertical relationships; check those labelled points against the actual tank and filter rather than using maximum head pressure as a placement rule.
Route the supplied hoses according to that guide, without slack loops. The manual sets limits for extended hose runs and recommends the filter be fully below the aquarium for best performance. Confirm those conditions before cutting hoses; a short cut cannot be undone by assuming a generic extension is suitable.
Reserve access to the utility valve at the lower part of the canister. It needs a controlled drainage route during maintenance. Also plan where the emptied filter and media baskets can be handled upright, with a suitable container or sink available. Lifting a full canister from an inaccessible cupboard should not become the routine.
Keep electrical connections away from the water route and follow the manual’s drip-loop instructions. Check the unit’s rating label and supplied cord before operation. A damaged cord, abnormal leak or wet electrical connection is a reason to stop and follow the safety instructions, rather than attempt a live repair.
What makes the Fluval FX6 a useful option?
The relevant strengths are its substantial media space, stackable baskets, directed output nozzles and a utility valve for draining the canister. Fluval specifies use in freshwater and saltwater ornamental aquariums. These features support a particular maintenance arrangement; they are not proof that every tank needs this much equipment.
For a matching aquarium and cabinet, check the Fluval FX6 A219 canister-filter option on Amazon. Confirm the US electrical version, package contents and the planned hose connections before ordering. The specified purchase is the filter, not every optional FX accessory shown elsewhere.
PRODUCT MENTIONED

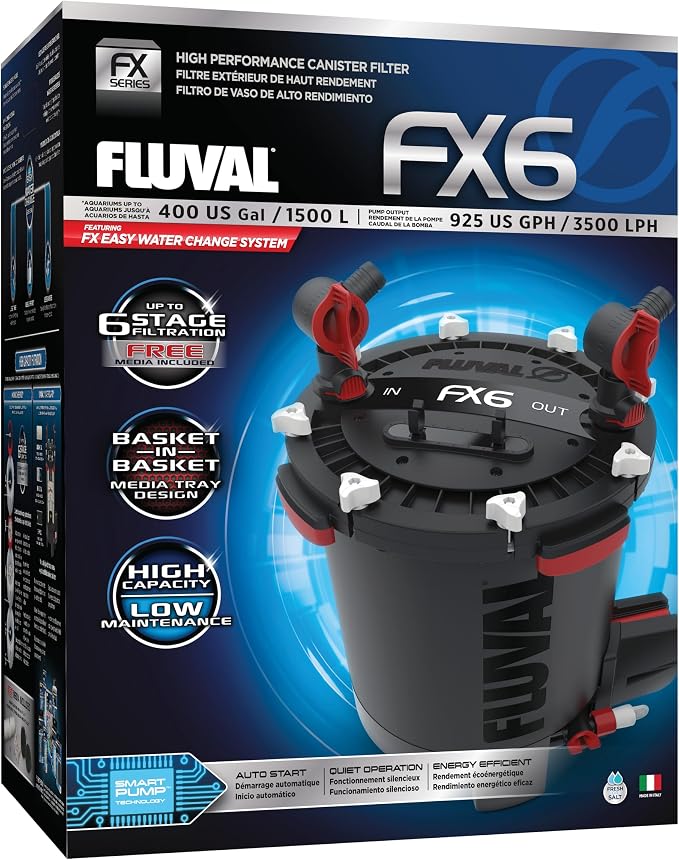

Fluval FX6 High Performance Canister Filter for Aquariums Up to 400 Gallons
Amazon · Details on the retailer’s website
Its disadvantages are mainly practical: a large wet system needs floor space, a planned drain route and regular attention to hoses, seals and media. A nominally powerful filter can still be the wrong choice when the return flow does not suit the inhabitants or the owner cannot maintain it comfortably.
Fluval’s statements about quiet operation and reduced maintenance are manufacturer claims, not independently verified noise or labor measurements. Do not interpret “self-starting” as “maintenance-free,” and do not let clear-looking water replace the aquarium’s normal water-quality checks.
Prepare the first start with the Fluval FX6 instructions
Identify the FX6 parts and follow its column in the shared FX manual. The document also covers FX2 and FX4, whose basket counts, filling amounts and some service components differ. A family name is not permission to follow whichever illustration is easiest to find.
Complete assembly and the required water fill before connecting power. The manual specifies at least 2 US gallons, or 8 liters, in the FX6 canister for priming. It also requires the intake strainer to be submerged, the appropriate valve connections locked and the utility valve closed when it is not in use.
Check media placement without overfilling the baskets. The manual requires free space above media so the baskets fit together properly and directs loose granular media into suitable bags. Keeping the intended water path and basket fit matters more than packing in as much material as possible.
When powered, the documented start sequence runs the pump for one minute, stops for two minutes to evacuate air, then resumes. This initial pause is an intended part of priming. The manual separately describes a one-minute air-evacuation stop every 12 hours; it does not describe that recurring event as the full three-minute startup sequence.
Keep that distinction in mind when interpreting a stop. Check the matched troubleshooting instructions if the behavior does not match the documented pattern or flow does not resume. Do not repeatedly unplug and reconnect the filter without investigating the actual installation.
Plan Fluval FX6 maintenance before flow drops
Use the manual’s component schedule as a starting framework and inspect the actual setup. Hoses, intake, impeller and media have different maintenance jobs. Replacing everything at once is not the same as cleaning a canister appropriately.
For filter disassembly, follow the FX4/FX6 draining route in the manual, including the instructed valve positions and unplugging. Keep the utility valve closed when unused: opening it without a controlled destination can cause an immediate spill. Do not disconnect a hose simply because it appears to be above the water.
Media care is specific. The manual directs foam rinsing with aquarium or dechlorinated water, biological-media rinsing with aquarium water, and chemical-media replacement as needed. It says not to use soap or detergent on the canister, baskets or trays. New-media dust rinsing during initial setup should not be confused with cleaning established biological media.
Seals also need matched care and compatible parts. Do not use petroleum jelly or an unverified household lubricant to stop a leak. If a connection or seal remains damaged, obtain the correct manufacturer guidance rather than using added clamp pressure as a repair.
Record when components were inspected and what changed in flow or noise. A maintenance record helps you notice a blocked hose or worn part without claiming that every aquarium will follow the same replacement interval.
Keep water changes separate from debris capture
The FX6 offers a utility-valve arrangement for water changes, but the process is not equivalent to simply opening a drain and walking away. Read the manufacturer’s separate FX water-change instructions before using that function. They distinguish draining aquarium water, returning prepared water and restarting for air evacuation.
The guide specifically warns against kinking a hose and shows stopping before a refill container empties, leaving a small amount to avoid air suction. Those controls require attention. Keep the receiving container stable and monitor both the aquarium and the drainage or refill destination.
Choose the aquarium’s water-change amount and replacement-water preparation from its actual requirements. A filter’s maximum tank rating does not prescribe a universal water-change schedule or remove the need for suitable temperature and water treatment.
Frequently asked questions
Is 925 GPH the flow I will get in my tank?
No. That is the manufacturer’s pump-output figure. Fluval also lists 563 US GPH filter circulation under stated measurement conditions without media and in-tank accessories. Your installed setup is not established by either headline alone, so account for the real hoses, equipment and maintenance condition.
Will it fit any cabinet with a 21-inch opening?
Do not assume so. The canister body is only part of the installation. You need room for hose connections, the prescribed below-water placement, utility-valve access and removal for service. Check the actual cabinet, door opening and hose route against the complete installation guide.
Does its automatic pause mean it is faulty?
The startup sequence includes a one-minute run and two-minute pause before resuming. A separate recurring stop releases accumulated air. Compare the actual event with the manual; an unexpected stop or failure to resume needs investigation instead of being dismissed as normal.
Choose a filter you can install and maintain
The Fluval FX6 is a plausible option for a substantial aquarium when its media space and maintenance features solve a real need. First separate the pump and circulation figures, confirm the electrical version and measure the complete installation. Then check the livestock’s flow requirements and your ability to reach hoses, valves and baskets.
If those conditions fit, follow the FX6-specific setup and ongoing care instructions. If the cabinet is cramped or the water route cannot be controlled, reconsider the arrangement before buying. A larger rating cannot compensate for an inaccessible filter, an unsuitable return flow or a maintenance routine that will be skipped.
