The Fluval 107 is a small external canister, but its body dimensions are only one part of fitting it into a home aquarium. You also need a compliant below-tank position, a suitable hose route and enough access to disconnect, lift and clean the unit.
Choose the US A440 configuration, ASIN B07JGLN6XC, by its actual label and instructions. Do not scale down a 207 specification or copy a larger filter’s parts list. The useful decision is whether this complete system can be installed and maintained correctly in your space.
Identify the exact US Fluval 107
The current US manufacturer page identifies A440 and UPC 015561104401. It lists a 120V/60Hz version drawing 10 watts. Confirm those requirements on the delivered unit before use, particularly when a marketplace groups products from different regions.
| Specification | US 107 manufacturer value | Buying implication |
|---|---|---|
| Body | 19 × 18 × 35 cm; approximately 7.5 × 7 × 13.7 inches | Connected parts and removal need additional space |
| Pump performance | 550 L/h | Separate from installed filter circulation |
| Filter circulation | 360 L/h | Published test figure, not every setup’s measured flow |
| Basket volume | 1.2 L | Not the same as total chamber or canister volume |
| Total chamber volume | 2.0 L | Does not authorize overfilling media |
| Maximum water column | 1.45 m | Not the permitted cabinet-placement rule |
The retailer’s dimension fields and an additional UPC entry are inconsistent with the manufacturer identity. Use A440, the correct primary UPC and the actual supplied equipment to resolve the order. Do not interpret an incorrect cube-shaped dimension field as the real product size.
The current manufacturer contents name Bio-Foam variants, carbon and Quick Clear among the supplied media and parts. Do not assume BIOMAX is included simply because the wider 07 family supports biological media. Check the delivered package against its documentation.
Measure Fluval 107 removal space

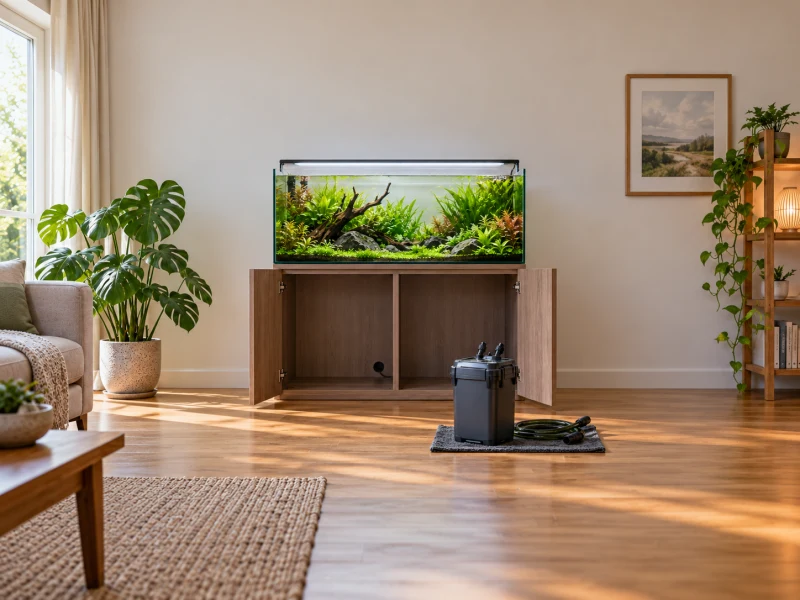

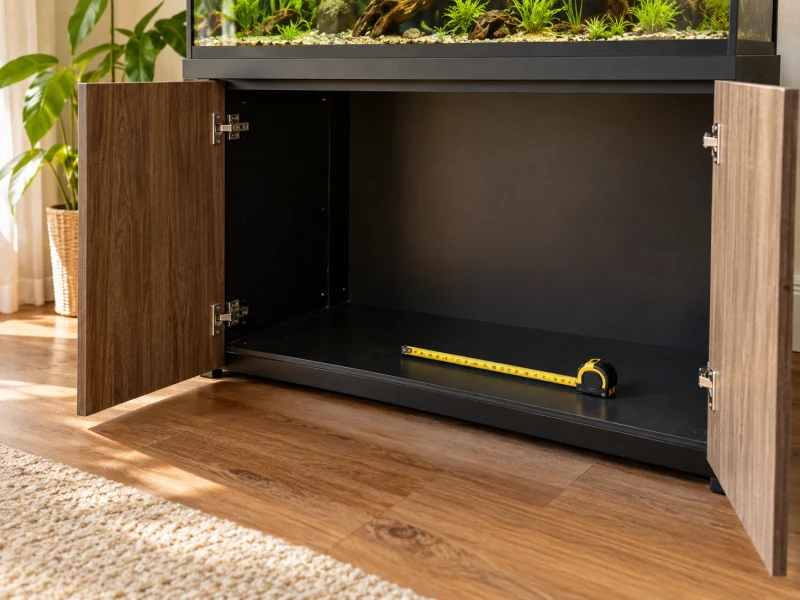

Measure the cabinet door opening as well as the interior. The canister must be reachable, and the motor head needs room to release and lift. Allow a practical route to a maintenance basin without lifting by the lid or pulling on connected hoses.
No universal extra clearance is established by the body dimensions alone. A useful dry planning exercise is to check the full movement using the actual empty unit and matched instructions before committing the final arrangement. Keep all electrical parts unpowered during preparation.
Think about the person doing the work. Water and wet media add handling demands, and a low cabinet can require awkward lifting. A compact filter is not automatically an accessible filter.
Keep valves and connections visible enough for inspection. An attractive closed cabinet does not replace checking for water outside the system or ensuring that a fitting can be handled without sideways strain.
Consider the Fluval 107 A440 when its below-tank gravity-fed position, actual service access and care requirements fit your aquarium. Pass if the unit can enter the cabinet only by bending hoses sharply, hiding the valves or leaving no practical way to remove the canister.
PRODUCT MENTIONED
Fluval 107 Canister Filter, A440
Amazon · Details on the retailer’s website
Keep Fluval 107 height limits separate
The manufacturer’s 07 Series manual requires gravity-fed placement below the aquarium. It specifies that the filter base must not be more than 1.4 m below the water level and gives a maximum 17.5 cm gap between the aquarium rim and water level.
Those are installation conditions. The separate 1.45 m maximum water-column specification is not a replacement for them. Do not infer permission for an unusual high shelf, floor route or remote installation by comparing just one height number.
The manual calls for a suitable direct hose route with minimal slack and no loops. Confirm the intended position before cutting or assembling any supplied hose under the instructions. A guessed longer route can create a problem the advertised pump figure does not solve.

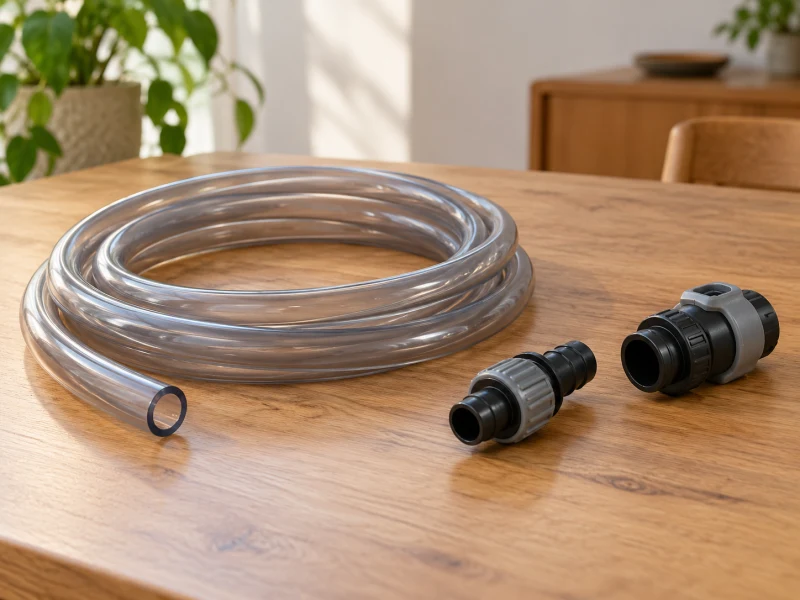

The product page identifies 16 mm, or 5/8-inch, ribbed hosing. That specification is not blanket approval for arbitrary tubing, barbed fittings or adapters. Identify each connection from the actual model’s parts information.
Keep the intake away from an air source as directed and follow the matched intake and outlet placement instructions. Startup and final operating positions can be described at different stages in the manual; do not reduce the whole sequence to one placement tip from a short video.
Understand Fluval 107 priming before installation
The 07 manual says not to fill the canister manually before assembly. Its AquaStop and instant-prime arrangement uses the correctly assembled system to bring water into the canister. A generic instruction to fill every filter body first does not apply here.
Read the complete startup sequence, including valve position, priming, full filling and air release before power is connected. Do not let the motor run dry while trying repeated improvised solutions. A product described as easy to prime still depends on the correct water route.
Reassembly after cleaning has its own conditions. The manual distinguishes a retained hose vacuum from a disconnected or drained hose arrangement. Use the appropriate documented sequence rather than assuming every restart is identical.
Flow adjustment is also conditional: the manual limits how far the AquaStop lever may be raised while operating. It is not a permission to run the filter against a mostly closed valve. If the acceptable adjustment cannot suit the animals, reconsider the setup.
Plan separate Fluval 107 media-care jobs

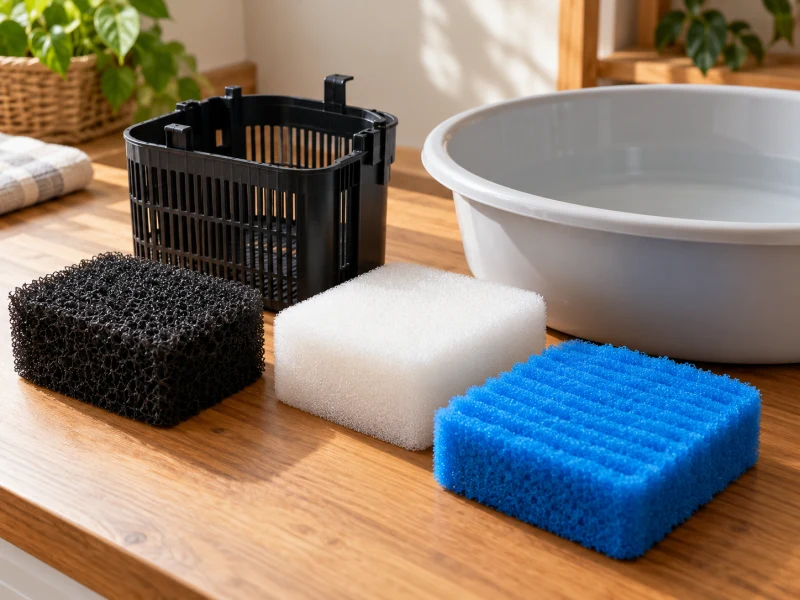

Mechanical media trap material; established biological media support the aquarium’s biological processes. Clean and replace each component under its own instructions rather than treating the basket as one disposable object.
The manual specifies aquarium water for biological-media rinsing and says never to replace all media at once. It allows appropriate foam care in aquarium or dechlorinated water. Initial rinsing of new supplied media is a separate task from maintaining an established biological medium.
Use no soap or detergent on filter media and components. Keep the maintenance area away from household cleaning chemicals. Retain the instructed media order and avoid overfilling baskets; more material is not automatically better circulation.
The manufacturer provides component-specific maintenance intervals. Use them alongside observation of the actual equipment and aquarium, not as a guarantee that a blocked intake or leak can wait until the next scheduled date.
Include seals and the impeller in the care plan
The motor head gasket, valve seals, primer and impeller have different inspection and service requirements. The manual specifies an appropriate silicone-based lubricant for applicable seals and warns against petroleum jelly and animal or vegetable oils.
A ceramic shaft still needs careful handling. Do not infer that a marketing durability statement permits forceful removal, abrasive cleaning or an unlisted replacement. Order parts by the actual 107 reference and current manufacturer guidance.
Follow the manual’s electrical precautions before opening or reaching into the aquarium. Disconnect the relevant aquarium appliances, preserve the required drip loops and never attempt an electrical repair to a damaged unit.
If leakage or abnormal operation occurs, use the prescribed safe shutdown response and identify the cause. Do not keep the filter running while applying tape, tightening an unidentified fitting or experimenting with sealant.
Assess capacity without a fixed fish allowance
The 107’s advertised tank range is a manufacturer selection range, not a stocking recipe. Adult animal size, waste load, plants, flow tolerance and maintenance affect suitability. No pump rating establishes a universal fish count.
RSPCA aquarium advice emphasizes biological filtration, appropriate preparation and water testing. Clear water and a visible outlet are not proof that ammonia or nitrite conditions are suitable.
Include the required water-care routine, correct consumables and service time in the cost. The 107 may be physically small while still needing the full attention expected of an external water circuit.
Questions before buying the Fluval 107
Can its height fit be judged from 35 cm alone?
No. That is the body height. You still need the connected equipment, prescribed placement and access to remove and service the unit.
Is 550 L/h the filter’s guaranteed tank circulation?
No. Fluval separates pump performance from the 360 L/h filter-circulation figure. Actual conditions and the measurement definition matter.
Should I fill it manually like a hang-on filter?
No. The 07 manual instructs owners not to manually fill the canister before assembly. Follow its complete priming sequence for the actual setup.
Buy around the complete service route
The Fluval 107 A440 is a defined option when its US supply, below-tank position, hose arrangement and maintenance access fit. Confirm the package and instructions before installing it.
If a cabinet makes valves inaccessible or routine cleaning difficult, change the plan before adding water. The useful fit includes the next maintenance session, not just the day the filter arrives.
