AI-created aquarium scene; not an A202 installation, dissolved-oxygen test or approved stocking arrangement.
A Fluval air pump moves air through airline tubing to an air-driven accessory. The A202 is useful when two separately adjustable outlets suit the planned air stones or compatible equipment. It stays outside the aquarium and must remain dry.
The selected US model is A202, reference A853, ASIN B09CDY2FZF. Plan the tubing, check valves, location and accessory resistance before choosing it. A large bubble stream does not establish the dissolved-oxygen concentration or solve every water-quality problem.
Identify the Fluval air pump A202
The current US A202 page lists UPC 015561108539 and two independently controlled outlets. Its US power specification is 3 W at 120 V / 60 Hz. The separate 230–240 V / 50 Hz specification is 3.8 W.
Check the electrical label on the delivered unit. Do not combine the regional ratings, choose the A101’s 2 W figure for this model or assume that all items in the A Series have the same outlet count.
| Field | A202 information | Practical check |
|---|---|---|
| Model and reference | A202 / A853 | Match the selected unit |
| US power | 3 W; 120 V / 60 Hz | Verify the actual electrical label |
| Outlets | Two, independently adjustable | Plan each air route |
| Hose connection | 3/16 inch / 4.78 mm | Use compatible airline and accessories |
| Published total output | 180–220 LPH / 47–58 US GPH | Airflow, not water-pump circulation |
| Location | Dry, secure, outside water | Include backflow protection and service access |
Keep air delivery separate from water filtration
A canister return, spray bar, powered surface skimmer and air pump have different connections and jobs. A spray bar distributes returning water. A surface skimmer collects a surface film. An air pump supplies air to compatible accessories through airline.
The A202 is not an impeller-driven water pump. Its airflow numbers cannot be substituted for a filter’s water-throughput rating. It also does not supply biological filtration by itself; any air-driven filter has its own suitability and maintenance requirements.
Fluval describes the A Series as supporting circulation and oxygen levels. That is a manufacturer benefit claim, not a measured result for a particular aquarium. Flow, depth, accessory condition, the wider setup and the animals’ requirements still need assessment.
Do not diagnose gasping or abnormal behavior from bubbles alone. Investigate the aquarium and seek appropriate aquatics or veterinary help when animals are unwell. Buying a more powerful pump should not delay attention to an urgent problem.
Plan both Fluval air pump outlets

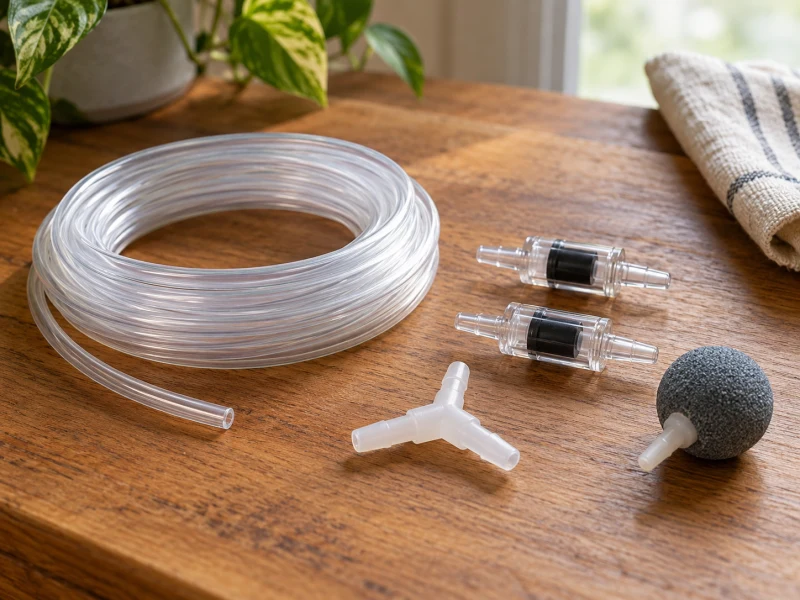

Draw the route from each outlet to the intended accessory. Identify compatible tubing, a suitable check valve for each protected route and any needed air-control assembly. The A Series North American manual identifies airline and check valves as separately sold items.
Do not assume the pump package includes every fitting shown in an installation illustration. Confirm current box contents with the seller and identify the actual accessory before ordering extra parts.
Keep tubing free from kinks, pinches and pulling at the outlet. Allow access to inspect it. A route hidden behind a cabinet can become difficult to check after equipment is moved.
The two knobs control the two outlets separately. Adding a branch valve does not create unlimited pump capacity. Multiple accessories need balancing under the manual’s instructions, with attention to back pressure rather than closing every unused route indiscriminately.
Choose A202 A853 when two independently adjustable air outlets fit the intended accessories and you can provide a dry, secure location with the documented backflow precautions. A water-return accessory, a battery backup or a measured oxygen-control system requires a different equipment decision.
PRODUCT MENTIONED

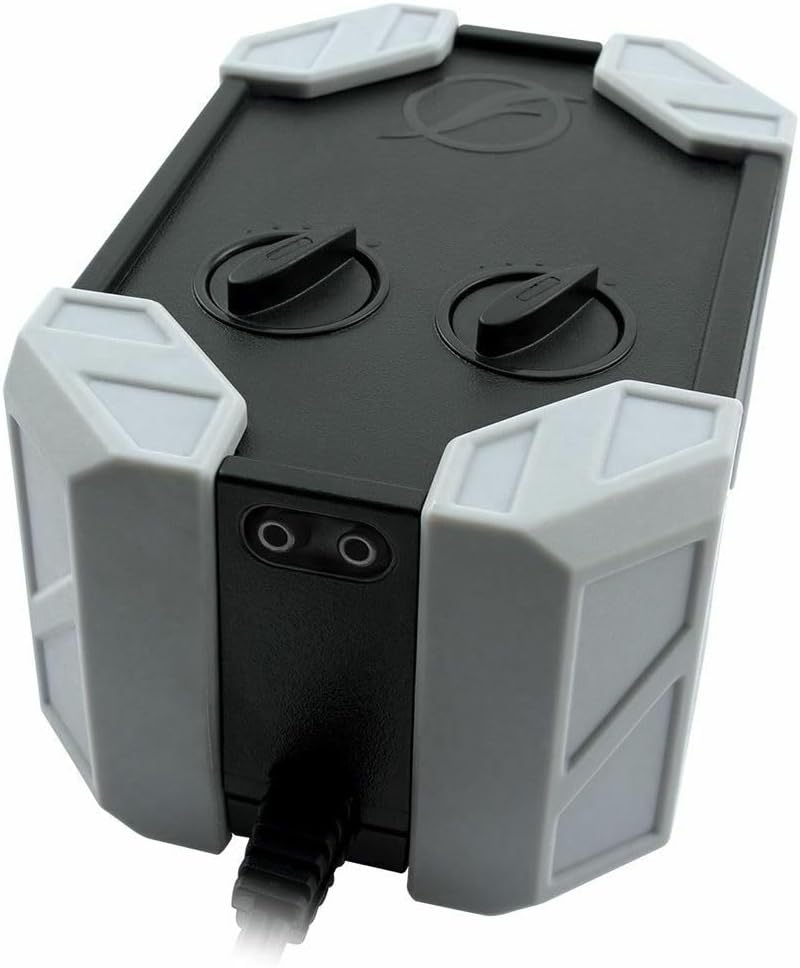

Fluval A202 3 W Aquarium Air Pump, A853
Amazon · Details on the retailer’s website
Use the documented backflow precautions
Water can siphon backward through airline when the system stops or is disturbed. The manual strongly recommends a check valve between pump and aquarium and shows it in its illustrated arrangements.
For its elevated-surface arrangement, it specifies at least 12 inches / 30 cm above aquarium water level, with a raised edge to prevent sliding, and no placement directly above the aquarium. It also illustrates a lower position with a check valve and a vertical wall-mounted option.
The safety section favors locating the pump above water level. Use the supplied regional manual and its diagrams to choose the complete arrangement. A lower shelf should never be interpreted as permission to omit the valve or leave the pump directly under possible spills.
Follow the actual check valve’s direction markings. A backwards valve can stop useful air delivery. No photograph of a generic loose valve establishes its internal flow direction or proves a finished line is protected.
Provide the prescribed electrical drip loop and keep connections dry. This is an indoor household appliance, not submersible equipment. Never put it into water, and follow the manual’s electrical precautions before handling equipment or entering the aquarium.
Read Fluval air pump output as a conditional rating
The A202 product table lists a total 180–220 LPH air-output range. It does not give a full flow-versus-depth curve or define every accessory and pressure condition for that figure.
The manual separately lists a maximum depth of 2 m / 6.5 feet. That limit does not establish delivery of the full published airflow at that depth. Nor does it prove that every stone, diffuser or long airline will perform identically.
Fluval markets the pump for aquariums up to 80 US gallons / 300 L. Use that as a manufacturer selection reference, then check the actual air-driven task. It is not an approved animal count or a universal oxygen guarantee for that volume.
The manual says clockwise knob movement increases output and counterclockwise reduces it. Adjust within the complete documented setup and observe the result. Maximum output is not automatically the most suitable flow for the inhabitants or accessories.
Separate motor vibration from bubble noise
Fluval lists a noise-dampening baffle chamber and oversized rubber feet. These are reasons to consider the design when reducing transmitted vibration matters. A hard shelf, cabinet contact and the bubble stream can still affect the sound you hear.
The product table’s below-28 dB figure is a manufacturer specification without a complete measurement protocol on that page. It should not be presented as an independently measured bedroom result or a guarantee at a particular listening position.

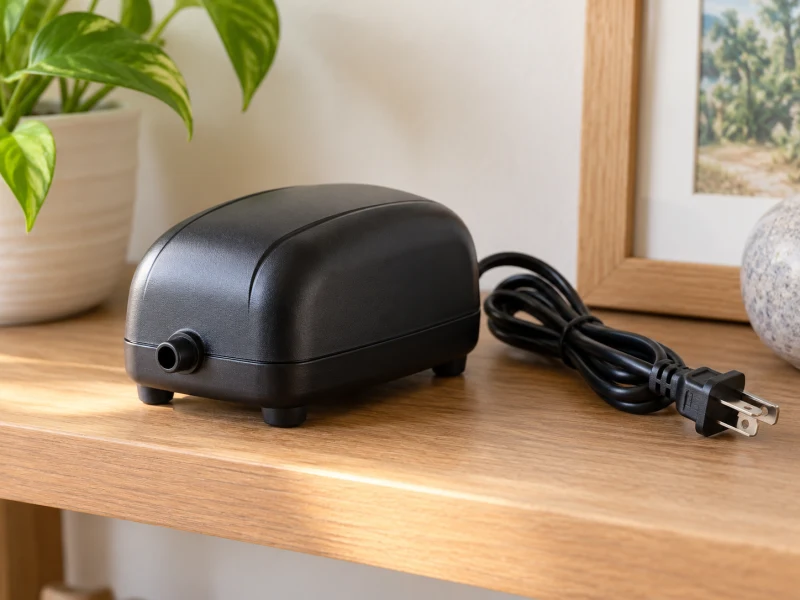

Keep the pump on an appropriate dry surface or use the documented rubber hang tag arrangement. The manual specifically warns against carpet because fibers can obstruct incoming air. Do not muffle the unit by wrapping it in towels, enclosing it without ventilation or resting it on a soft obstruction.
If sound changes, note whether it comes from the pump body, contact with furniture or the water surface. Check the external installation under the manual’s precautions before assuming a failed motor. The noise of rising bubbles remains separate from the pump’s own mechanism.
Keep the airline and accessories serviceable
The matching A Series instructions explain how restricted airflow creates back pressure on the diaphragm. Clogged stones, blocked lines and unsuitable valve settings can reduce performance and shorten component life.
Inspect tubing during normal aquarium maintenance. Replace damaged, kinked or pinched sections as appropriate, and maintain the actual air-driven accessory under its own instructions.
The manual says this pump requires no regular internal maintenance during its life. Do not turn a diaphragm-related troubleshooting note into a routine instruction to open the electrical housing. Obtain authorized model-specific support when external checks do not resolve a problem.
Backflow precautions also apply during removal. The manual specifies a sequence for disconnecting airline and power. Read that matching section before disturbing the arrangement; do not pull a below-water-level pump out of service with the aquarium airline still able to siphon into it.
Questions about the Fluval air pump
Does A202 include a battery backup?
The cited A202 specifications describe a mains-powered air pump. They establish no battery backup. If power-outage operation is the requirement, confirm a system specifically designed for that task.
Does each outlet get the full stated airflow?
The page labels 180–220 LPH as total output. Do not multiply that figure by two or promise equal delivery through different accessory routes.
Can the pump sit in the aquarium?
No. It must remain dry outside water. Install the air system using the regional manual’s location, valve and electrical precautions.
Choose A202 around the actual air system
The Fluval air pump A202 fits a planned two-outlet air system when its electrical version, accessory resistance, dry mounting space and backflow protection are suitable. Confirm the complete parts list and keep both airline routes accessible for inspection.
