A Fluval M Series heater suits an aquarium keeper who wants a glass heater with a temperature dial and heating indicator, and will verify the water with a separate thermometer. The M150 example is A783, a 150 W US model. It does not provide the E Series digital display.
Check the delivered rating label, available installation space and regional waterline instructions before buying. The North American M150 manual imposes a maximum waterline even though the broad product FAQ calls the range fully submersible. Follow the markings and instructions for the actual North American unit.
Match the Fluval M Series heater model and power
The current US M150 page identifies A783 and UPC 015561107839. Its US specification table lists 150 W at 120 V / 60 Hz and dimensions of approximately 13 × 1 × 1 inches, or 33 × 2.5 × 2.5 cm.
The selected retailer identity is ASIN B0027VONH6. Match the model and electrical label on the delivered unit, rather than assuming every regional M150 uses the same mains supply. A plug adapter does not establish voltage compatibility.
| Check | M150 US example | Buying consequence |
|---|---|---|
| Reference | A783; UPC 015561107839 | Match the actual selected unit |
| Rated power | 150 W | Assess room and aquarium conditions |
| US electrical specification | 120 V / 60 Hz | Verify the delivered label |
| Published length | About 33 cm / 13 inches | Measure usable installation space |
| Control | Temperature dial and heating indicator | Use a separate accurate thermometer |
| Regional installation | North American minimum and maximum waterlines | Do not apply generic full-submersion advice |
Size a Fluval M Series heater for the room
Fluval markets the M150 for aquariums up to 45 US gallons / 150 L. Those are the manufacturer’s paired labels, not an exact unit conversion or a guarantee for every aquarium of that volume.
The M150 North American manual says its performance depends on the difference between room temperature and the desired setting. Its stated design condition is a difference below 10°C / 18°F. Larger differences may require more heating capacity.
A room that cools substantially overnight can create a different demand from the same aquarium in a steady heated room. A missing cover, nearby cooling source, temperature swings and other equipment also affect the conditions described in the manual.
Measure the actual conditions and discuss the choice with an experienced aquatics supplier when the system is near a limit. Do not apply a universal watts-per-gallon rule or automatically add a second heater without assessing the complete setup.
Inspect the Fluval M Series heater before fitting it
Check the glass, cord, plug, bracket and suction cups before installation. The manual prohibits operation with damaged electrical parts, malfunction or other damage. The power cord is not replaceable; do not splice it, cut it or open the factory-sealed heater.
Allow space for the whole heater and its mounting bracket without pressing it against rocks, gravel or decorations. Published outside length alone does not establish that an unusually narrow rear compartment is suitable.
The mirrored finish reflects surrounding colors and may make the tube less visually prominent. It does not replace clearance around the glass, regular inspection or a safe maintenance position. Keep the heater accessible enough to inspect its markings and mounting.
Children need supervision around the equipment. Keep an unused heater protected from impact and do not treat intact-looking glass as proof that a dropped unit is safe.
Choose the M150 when a 150 W US A783 suits the aquarium, room conditions and marked installation limits, and a dial-controlled heater with separate temperature checking meets your needs. Choose a different control system if a digital display or alarm is essential.
PRODUCT MENTIONED

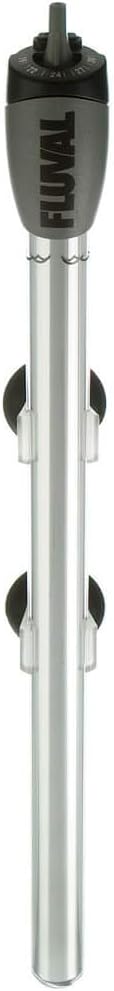

Fluval M150 150 W Aquarium Heater, A783
Amazon · Details on the retailer’s website
Respect the North American waterline limits
The current product FAQ says M Series heaters are fully submersible. The linked A783 North American manual specifically says water must not rise above the marked maximum waterline and must not fall below the marked minimum.
Use the actual North American markings and supplied instructions. Do not push the cap underwater on the strength of the broad FAQ. If the delivered unit’s markings or instructions differ, stop and ask Fluval to confirm the correct installation for that exact version.
The manual also contains a general depth statement. That does not cancel its separate North American maximum-line restriction. No invented distance from the cap can replace the waterlines printed on the unit.
Maintain the aquarium’s operating level as evaporation occurs. A water change can expose a heater that was correctly covered earlier. Disconnect the heater before that work and follow the cooling instructions before moving it.
Place a Fluval M Series heater where water circulates
The M150 instructions call for free circulation around the glass tube. They generally place it toward the rear, preferably near water movement, so warmed water can distribute through the aquarium.
Do not wedge the heater behind a dense barrier or let hardscape touch the tube. A hidden heater is harder to inspect, and contact with obstructions can produce uneven heating in the glass according to the manual.
Fit the mounting bracket and press the suction cups firmly against clean aquarium glass as instructed. Verify that the assembly stays secure. A heater lying loosely on the substrate is not an equivalent installation.
Choose a position that preserves the required waterlines and service access. If the aquarium layout makes those conditions impossible, change the equipment plan rather than guessing an unsupported mounting arrangement.
Set the dial and check the actual temperature
The current FAQ gives a dial-setting range of 66–86°F / 19–30°C. That equipment range is not a suitable temperature recommendation for every animal. Select the target from the actual species’ requirements.
After the heater is correctly mounted in water, the manual requires a 30-minute wait before connection so it can adjust to the aquarium temperature. It says attaining the selected water temperature can take up to 12 hours, with adjustment after that period if needed.
Verify the water with an accurate thermometer after the target has been reached, before adding fish, and throughout the aquarium’s life. The dial is a setting; it is not an independent measurement of water temperature.
The indicator illuminates while the heater is heating and turns off at the selected temperature. An unlit indicator alone does not establish a fault or prove that the aquarium is at the correct temperature.
Keep a simple record of the dial setting, measured water temperature and room conditions. If the temperature remains wrong, check the model, installation, water circulation and room-to-water difference before repeatedly turning the dial higher.
Disconnect and cool before heater maintenance
The M150 safety instructions require disconnection of aquarium equipment before hands enter the water or equipment is handled. Before removing this heater, unplug it and allow at least 30 minutes to cool.
Keep the heater in its safe water position during the required cooling period. Never operate it outside water or handle hot glass. Do not substitute the initial temperature-acclimation wait for the separate cooling requirement.
Clean deposits from the tube according to the supplied instructions and rinse as directed before reinstalling. Do not scrape the glass with hard tools, open the sealed unit or turn cleaning into an electrical repair.
Arrange the electrical cord with the specified drip loop. If a plug or receptacle becomes wet, the manual says to disconnect the supplying fuse or circuit breaker before unplugging and examining it. Avoid reaching for a wet connection.
Questions about a Fluval M Series heater
Does M150 have a digital temperature display?
The M150 uses a dial and heating indicator. Verify water temperature with a separate accurate thermometer. E Series display and alarm features should not be assumed from the Fluval name.
Can the US heater be submerged above its cap?
The linked North American A783 manual requires the water to remain between the marked minimum and maximum. Follow those regional instructions, and obtain model-specific clarification if the delivered documentation differs.
Will 150 W heat every aquarium up to the advertised limit?
No universal result follows from that limit. Room temperature, the required temperature rise, circulation, cover and aquarium placement affect the choice. Verify performance with a thermometer.
Choose the control system you will maintain
The Fluval M Series heater is a practical dial-control option when the exact electrical version, room conditions, installation space and waterline limits fit. Keep an accurate thermometer in the care routine and retain the supplied regional manual.
