AI-created lighting scene; not the exact 16875 lamp, a tested coverage area or a livestock recommendation.
The Fluval Nano plant light in the current 4.0 generation is a compact, adjustable lamp for a smaller planted freshwater aquarium. The 20 W model is 16875, UPC 015561168755. Choose it around the aquarium glass, mounting space, plant layout and FluvalConnect controls.
The matching Nano manual requires glass between 3 and 8 mm thick and says it is not for aquariums with top frames. Those limits are narrower than the mounting range of some linear Plant lights. Measure the actual aquarium before treating the compact head as an easy fit.
Identify the Fluval Nano plant light generation
The current US 16875 page identifies Plant 4.0 LED Nano and FluvalConnect operation. The selected ASIN B000O3CYBQ currently displays the 4.0 package and matching reference. An older review attached to a long-running listing may concern a different version.
Compare the actual package and lamp label before installation. Do not use a Plant Nano 3.0 or Marine Nano manual because its square head looks similar. A plant-oriented spectrum also does not establish suitability for a marine reef.
| Check | Plant 4.0 Nano information | Decision before buying |
|---|---|---|
| Reference | 16875; UPC 015561168755 | Match the current generation |
| US specification | 20 W at 120 V / 60 Hz | Check the delivered supply label |
| Head dimensions | About 15.25 × 15.25 × 3 cm | Allow separate space for arm and access |
| Mounting glass | 3–8 mm; no top frame | Measure actual mounting point |
| Control | FluvalConnect mobile app | Confirm current phone compatibility |
| Manufacturer output | 1300 lumens; 7500 K | Assess plant needs and layout separately |
Measure the Fluval Nano plant light mounting point
The 16875 Nano installation diagram marks a 3 mm minimum and 8 mm maximum glass thickness. It also explicitly excludes aquariums with top frames. Check the edge where the clamp will actually attach, including any obstruction from a cover or existing equipment.
Do not use the linear Plant 4.0 lamp’s 3–15 mm range for this Nano clamp. Likewise, the family page’s separate 4.5–8 inch size-range field is not a glass-thickness specification. It cannot establish that an 8-inch-thick rim is supported.
A thick decorative frame, shaped rim or inaccessible rear edge may prevent the documented mounting arrangement. Ask Fluval about compatibility rather than cutting the frame, grinding glass or making an improvised adapter.
Plan where the arm and cable will go, and how the clamp can be inspected after the aquarium is planted. A lamp that fits the edge but blocks the filter lid may be awkward in daily ownership.
Use the adjustable arm without assuming full coverage
Fluval describes adjustment up and down, forward and backward, and side to side. The manual’s diagram shows the arm and head arrangement. This helps place the light over a suitable part of an aquascape without requiring a long strip fixture.
The head is approximately 6 × 6 × 1.25 inches. That is the housing size, not the illuminated footprint. A rectangular aquarium, tall hardscape and plants at different depths can create very different coverage questions.
Check the permitted adjustment and secure mounting using the supplied hardware. Leave room for cleaning and ordinary access without repeatedly twisting a loaded clamp against the glass.
Choose Plant 4.0 Nano 16875 when its 3–8 mm frameless-glass mounting requirement, adjustable arm and app-controlled operation suit the aquarium. Confirm coverage for the actual planting layout rather than choosing by lamp-head size or wattage alone.

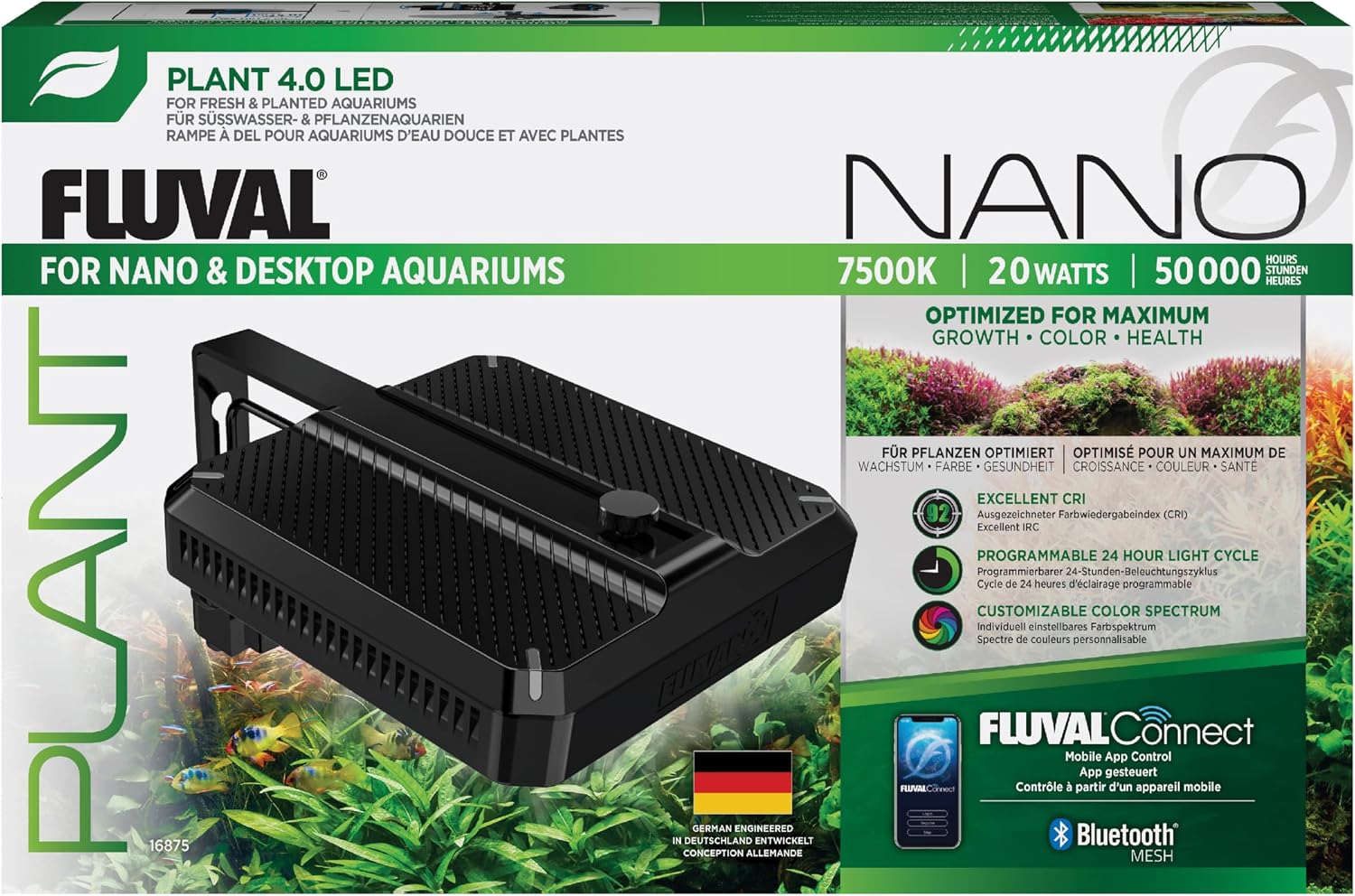

PRODUCT MENTIONED
Fluval Plant 4.0 Nano 20 W LED, 16875
Amazon · Details on the retailer’s website
Read Fluval Nano plant light specifications carefully
The US Nano family specification table lists 20 W, 100 LEDs, 1300 lumens and 7500 K. These are manufacturer specifications, not independently measured values for the lamp at every intensity setting.
Wattage is an electrical figure. Lumens describe visible output and color temperature describes appearance; neither gives a complete measure of plant-useful light across the aquarium floor.
The family page also gives PAR/LUX values at selected depths. A set of depth points does not establish a complete lateral map, the same result through every cover or the light reaching a leaf shaded by wood. Confirm relevant measurement conditions when a demanding plant depends on a precise light level.
CRI descriptions also vary between the current page and package artwork. Avoid choosing between them as though a single number proves plant growth. The actual planting plan requires more than a color-rendering claim.
Match the light to the planted layout
Start with the plants’ light requirements and where they will sit. A compact central source may illuminate an open area differently from a long, densely planted aquarium. Depth and shade need attention alongside the desired viewing appearance.
A bright foreground photograph is not a guarantee of carpeting growth in your tank. Nor does a 20 W rating establish how much supplemental carbon or fertilizer to use. Those are separate care decisions based on the actual species and system.
Observe the aquarium after changes and keep a record of settings and plant condition. Avoid changing light intensity, duration and several other care variables together if you want to understand the effect of an adjustment.
If the intended aquarium requires coverage outside the lamp’s useful arrangement, compare an appropriate alternative form rather than adding a second identical lamp automatically. Two fixtures add power supplies, mounting requirements and another set of settings to maintain.
Plan FluvalConnect control before installation
The current product page says the lamp is operated exclusively through FluvalConnect. It offers independent color channels, a programmable daily cycle and presets. Check the current app-store requirements for your actual phone and operating system.
The FluvalConnect manual includes 16875 among its supported Plant 4.0 models and describes their Bluetooth connection. Do not copy Wi-Fi or grouping instructions for a different aquarium-light family.
A 24-hour programmable cycle means the schedule spans a day. It is not a recommendation to keep the aquarium brightly illuminated for all 24 hours. Select an appropriate light-and-dark routine for the actual inhabitants and plants.
Follow the current app instructions for connection and any supported update. Confirm the actual settings and clock after setup. Do not assume a preset is a tested recipe for every planted aquarium or that a new software version has identical screens.
After a power interruption, check that the intended schedule and time are working on the actual unit. The sources do not establish an independently tested recovery result for your phone, firmware and installation.
Keep the Fluval Nano plant light dry and serviceable
Fluval lists IP67 protection, while the Nano safety instructions explicitly say not to immerse the fixture. Use the manual’s operating precautions; the rating is not permission to run the lamp underwater or wet its supply connections.
The current FAQ says the fixture can become warm. Avoid touching hot parts or staring directly into the operating light. Keep the supply and cable arrangement protected, with the required drip loop and accessible electrical connection.
Before maintenance, disconnect the electrical supply, unplug the transformer and remove the fixture using both hands as the manual directs. It recommends weekly attention to the fixture and lens so dust and deposits do not accumulate.
Wipe permitted exposed surfaces with a damp cloth, without detergents or harsh cleaner, and let all surfaces dry before reconnection. Do not submerge the lamp, open the housing or treat the non-replaceable light source as a home repair task.
Questions about the Fluval Nano plant light
Will it fit a framed aquarium?
The 16875 manual says it is not for aquariums with top frames and specifies 3–8 mm glass. Confirm any uncertain edge directly with Fluval before purchasing.
Does its head size describe coverage?
No. The 6-inch square housing is an outside dimension. Useful coverage depends on position, depth, shading and the actual plants’ requirements.
Does the current Nano use the older FluvalSmart instructions?
The current 4.0 product is documented for FluvalConnect. Match the actual generation and current app manual before relying on connection or schedule instructions.
Choose the mounting fit before the lighting effect
Choose the Fluval Nano plant light 16875 when its rimless-glass clamp, positioning range and current app controls suit the aquarium. Confirm the actual electrical label and practical plant coverage, then leave enough room to remove and clean the fixture safely.
