Fluval C2 vs C3: Which Fits Your Aquarium?

Fluval C2 and C3 are hang-on-back power filters with separate mechanical, chemical and biological media sections. C2 has the smaller published housing; C3 provides a higher nominal US circulation figure. Both need a compatible aquarium rim, a suitable water level and clear access above the filter.

Choose between the two by the complete installation and aquarium requirements. A larger capacity label cannot make a filter fit a thick rim, and a smaller filter is not automatically gentle enough for every small animal.

Check the installation in this order: rim, lid and rear space; then waterline and priming; then the aquarium’s flow needs and media access. A failure at the rim or service route rules out that placement before either gallon rating matters.

1. Measure the actual rim and lip. Both models share the documented 1-inch / 2.5 cm maximum; C3 does not solve a thicker-rim problem.
2. Check the closed lid and rear position. Allow the filter to sit vertically with its intended intake, then confirm cover and media removal. Housing size is not a complete installation envelope.
3. Check the working waterline. The guide’s maximum 2.25-inch / 6 cm drop below the rim and wet-start instructions must work with normal evaporation and maintenance.
4. Choose the aquarium fit. Assess inhabitants, waste load and the intended return flow. Use the ratings as specifications, not a universal stocking rule.

Compare Fluval C2 and C3 specifications

The current US C2 page identifies reference 14001 and UPC 015561140010. The C3 page identifies 14002 and UPC 015561140027. These are complete filters, not replacement pads or baskets.

The regional table separately gives lower circulation values for the 230–240 V / 50 Hz versions. Verify the delivered label and use the correct regional figures. Neither the 5 W rating nor a nominal flow calculation demonstrates measured performance in a finished aquarium.

When the Fluval C2 is the better fit

C2’s published housing is approximately 3 cm shorter along its length than C3’s. That can be useful when rear equipment space is limited. The width and height in the manufacturer’s table are the same for these two models.

Measure the complete occupied space, including the intake, cover and service route. A 15 cm housing dimension does not guarantee the filter will fit a 15 cm gap between other equipment.

The selected C2 listing is ASIN B003SJOLEQ and may use the retail reference 14001A1. Match the supplied package to the documented C2. Do not choose it solely because it costs less or seems smaller than the aquarium’s capacity label.

Choose Fluval C2 14001 when the smaller housing suits the available rear space and its flow and media arrangement suit the aquarium. Confirm the 1-inch rim limit, operating water level and access before buying; a 30-gallon label alone does not establish the fit.

PRODUCT MENTIONED

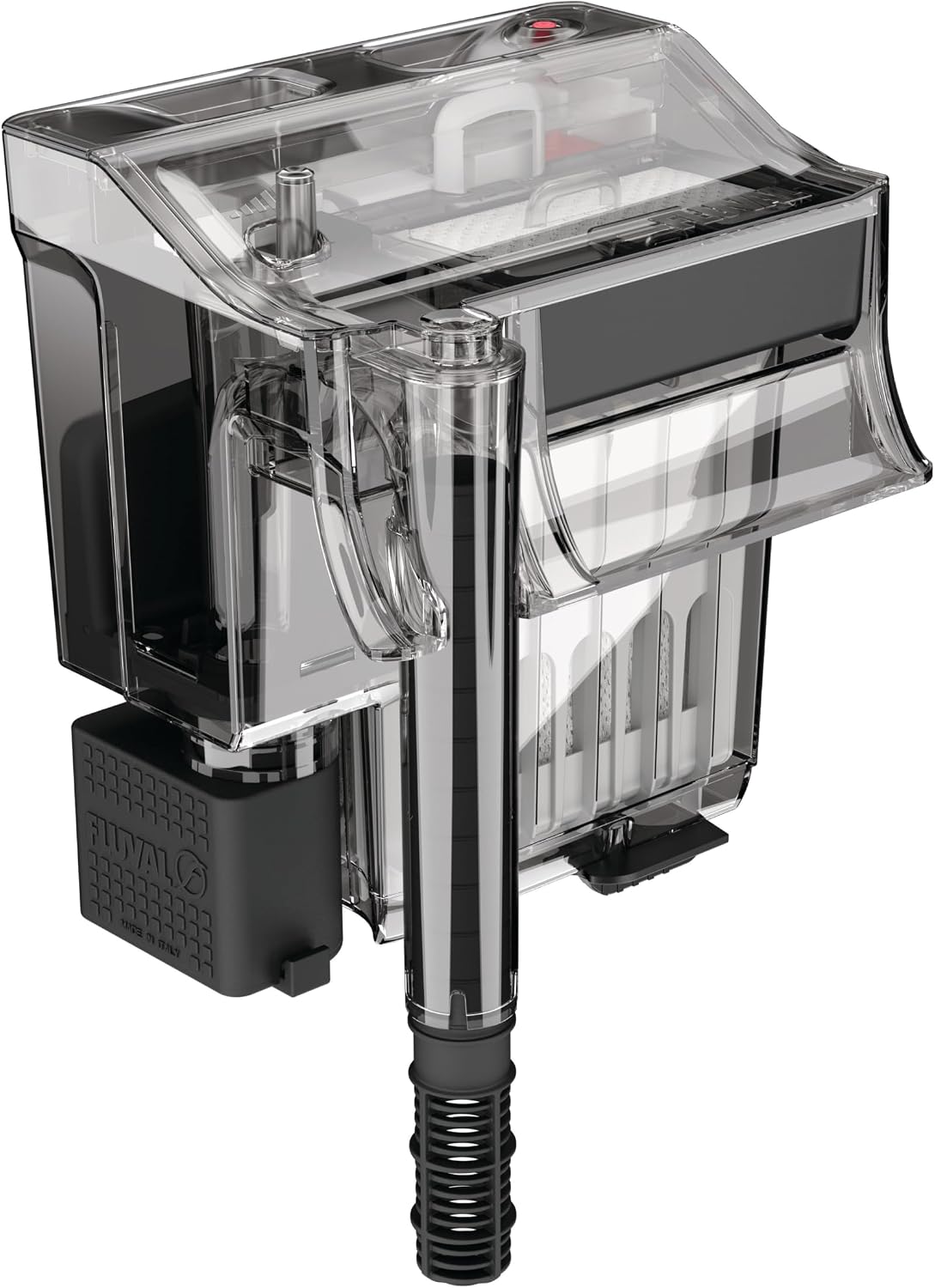

Fluval C2 Power Filter, 14001

Amazon · Details on the retailer’s website

View product

When to choose C3 instead of Fluval C2

C3 is relevant when the complete system calls for its higher nominal circulation and there is room for the larger body and appropriate maintenance. It has the same stated five-stage architecture, rather than being a different filtration type.

The selected C3 listing is ASIN B003SJQJ46. Its current manufacturer identity is 14002. The retailer contains a copied 30-gallon description, while the manufacturer identifies C3 with the up-to-50-gallon label. Confirm the actual C3 package rather than applying that copied sentence.

A higher flow rating does not guarantee suitable intake conditions for fry or shrimp. Assess the actual inhabitants and any compatible intake protection separately. Observe behavior after setup instead of relying on aquarium volume alone.

Choose Fluval C3 14002 when its larger housing and higher published US circulation are appropriate for the system, with room to remove its model-specific media sections. It keeps the same stated rim limit as C2 and does not solve an incompatible lid or low waterline.

PRODUCT MENTIONED

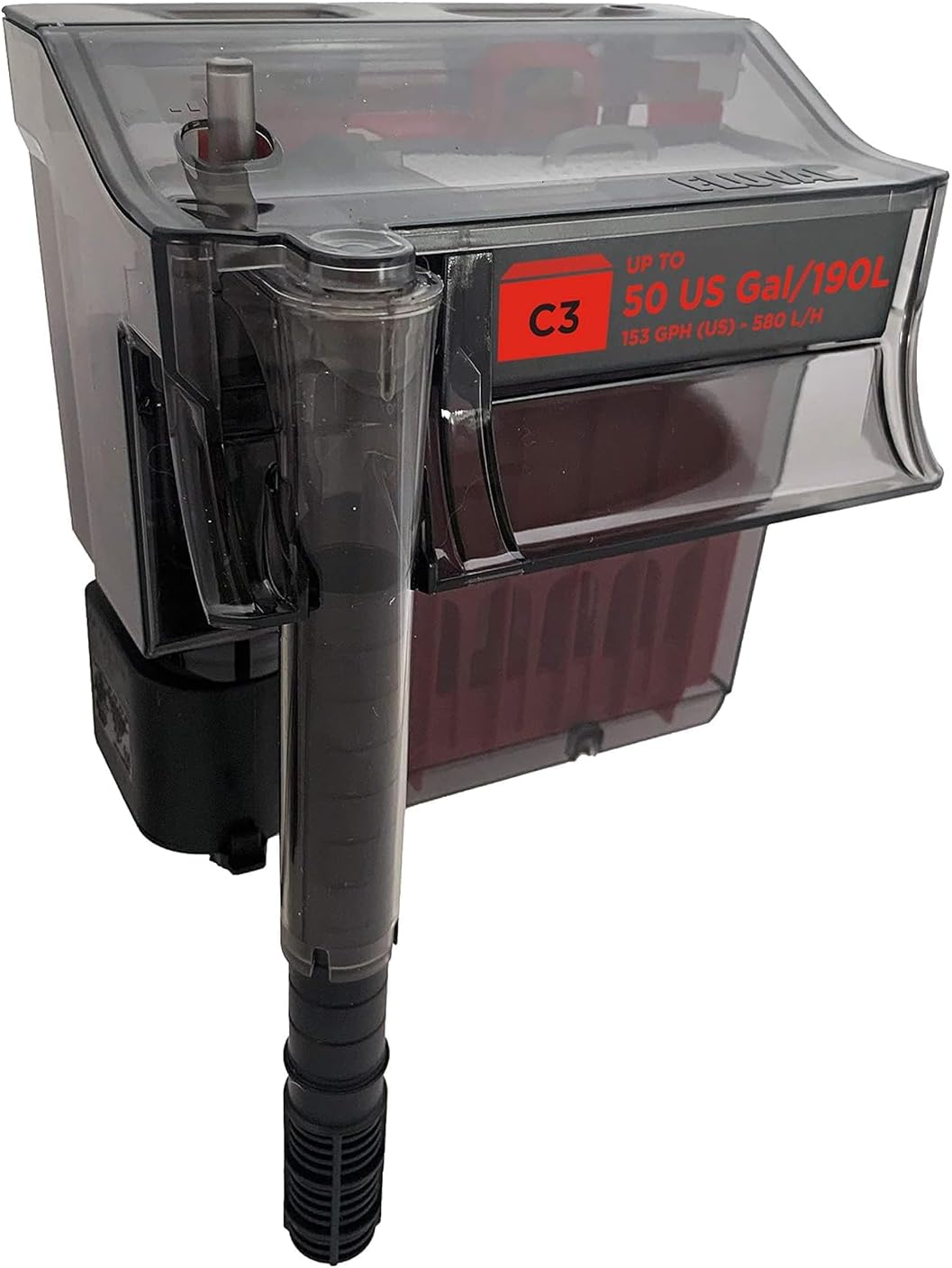

Fluval C3 Power Filter, 14002

Amazon · Details on the retailer’s website

View product

Measure the Fluval C2 and C3 rim and lid fit

The C Series guide sets the C2/C3 maximum rim at 1 inch / 2.5 cm. C4’s larger allowance does not apply. Rim shape, a molded lip and lid overhang still need checking even when the nominal thickness is within that limit.

Allow rear wall clearance, space for the intake and room to lift the cover and media. An installation that works only when the housing tilts or the lid presses on it is not a confirmed fit.

Use the supplied leveling device and adjust it so the filter sits vertically as directed. Do not wedge a household object underneath to compensate for an unsuitable mounting position.

For an unusually deep tank, confirm the required intake arrangement. The guide identifies extension parts, but the existence of an extension does not establish that every depth, lid and aquascape is compatible.

If the rim or lid rules out a hang-on-back installation, assess another filtration layout before buying. A canister arrangement has different cabinet and service-access requirements; moving equipment below the aquarium does not automatically solve the installation problem.

Start Fluval C2 and C3 with water in the case

Follow the complete guide for media preparation and assembly. It directs the owner to fill the filter case completely with water before startup and set the intake control to minimum for initial priming. Adjust the output after priming finishes.

Never operate either filter without water. If normal circulation does not start, disconnect and assess the documented causes. Do not keep the motor running in the hope that an empty or incorrectly assembled system will correct itself.

The guide says aquarium water should be no more than 2.25 inches / 6 cm below the rim. An intake remaining underwater is not, by itself, proof that the operating level is suitable. Account for evaporation and the planned water-change routine.

Provide the required drip loop and keep electrical connections dry. Disconnect aquarium equipment as directed before hands enter water or parts are handled. This filter-pump arrangement is not a submersible appliance.

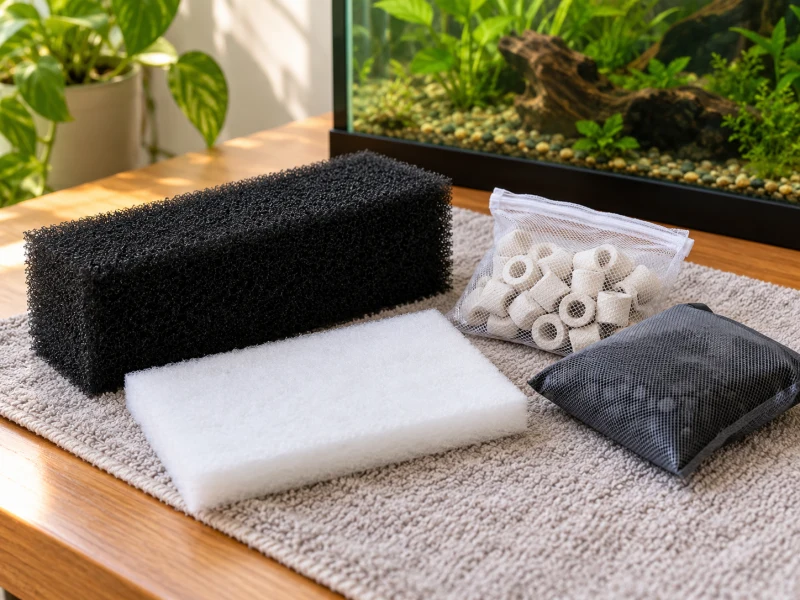

Use the separate media sections properly

Fluval includes Poly/Foam, activated carbon, BIOMAX and Bio-Screen material. Its five-stage description counts two mechanical stages, one chemical stage and two biological stages. It is a description of the design, not a guarantee of suitable water chemistry.

The guide specifies the dense polyester side of the mechanical pad facing the frame grid, and the Bio-Screen’s larger holes facing upward. Follow those matching instructions rather than reversing parts to copy another filter’s photograph.

Initial rinsing of new media differs from caring for established biological media. Preserve established bacterial activity using the relevant media-care instructions and suitable aquarium water where directed. Avoid soap and do not replace all media together merely to make the filter look new.

The cleaning indicator relates to the mechanical pad. It does not test ammonia, nitrite or the remaining capacity of carbon. Maintain water testing and observation independently of the indicator.

Keep Fluval C2 and C3 parts separate

Some assemblies share references across the two models, but others do not. The guide lists different trickle chambers, chemical baskets, mechanical frames and impellers for C2 and C3.

Order by the exact filter and confirmed part reference. A shared motor listing does not prove that a basket, lid or replacement pad from either model is interchangeable.

Keep the supplied guide and model details with the maintenance record. Note which component was cleaned or replaced, and what happened to the return flow afterward. That is more useful for a support request than describing the unit only as the small Fluval filter.

Match the C2 or C3 replacement reference

The manufacturer separately identifies C2 Poly/Foam pad 14008 and C3 Poly/Foam pad 14009. The C Series guide’s replacement-parts table also distinguishes the assemblies below. Use these references to identify the correct part, not to assume every media type has the same replacement schedule.

The guide lists a shared A16000 motor unit, but that does not make the model-specific chambers, pads or impellers interchangeable. Keep the exact filter and part reference with the maintenance record. If a current part listing or delivered component differs, ask Fluval before fitting it.

Check noise and return flow before replacing equipment

Falling-water sound, cabinet vibration and impeller noise are separate observations. Note the waterline, recent maintenance and control position. A quiet-operation claim does not establish an independent decibel result for either model in your room.

For motor noise, the guide directs attention to the impeller assembly after disconnection and the required removal sequence. Do not open the system while running, probe a moving intake or improvise lubrication.

For weak flow, check the accessible intake, mechanical pad, assembly and water level under the instructions. A new filter is not the automatic answer to a maintenance issue. Persistent problems need model-specific support.

Questions about Fluval C2 and C3

Does C3 fit a thicker rim than C2?

No. The cited guide gives both a 1-inch / 2.5 cm maximum rim. C4’s different allowance should not be transferred to either.

Can either filter start with an empty housing?

No. Fill the case and follow the documented minimum-flow priming sequence. Never run the filter without water.

Can C3 media be used automatically in C2?

No. Several parts are model-specific. Match the actual media or assembly reference before purchasing replacements.

Choose the installation you can reach and maintain

Choose Fluval C2 for a suitable smaller housing and documented system fit, or C3 when its larger body and higher nominal US circulation meet the plan. Confirm rim, lid, water level and media access before ordering either complete filter.
