The Fluval U2 and U3 put filtration inside the aquarium, so their footprint includes space the animals and plants could otherwise use. Compare the actual body, outlet location and cartridge-removal route before choosing the larger model.
The U2 is A470, ASIN B001Q1HPGE. The U3 is A475, with A475A1 used on the selected retailer listing, ASIN B001TKZ51E. They are complete filters with separate specifications, not U4 replacements or two sizes of the same loose cartridge.
Fluval U2 and U3: compare the US specifications
The current US U2 page and US U3 page identify each model and regional electrical specification. Match those to the delivered rating label.
| Check | U2 | U3 |
|---|---|---|
| Manufacturer reference | A470; UPC 015561104708 | A475; UPC 015561104753 |
| US power specification | 120V/60Hz, 5W | 120V/60Hz, 6W |
| Published pump output | 400 L/h | 600 L/h |
| Manufacturer body dimensions | 20 × 9 × 10 cm | 27 × 8 × 10 cm |
| Included media categories | Foam, Poly/Carbon and BIOMAX | Foam, Poly/Carbon and BIOMAX |
The retailer’s dimension fields differ from the manufacturer body dimensions. Use the primary values for initial planning and confirm the real product before installation. Do not assume a package dimension describes submerged space.
Some retailer U2 fields describe reverse osmosis and manual operation. Those do not match the electrically powered U Series filter described by Fluval. Do not use that catalog text as evidence of water purification capability or a non-electric installation.
Check Fluval U2 space inside the aquarium
Measure available glass, substrate height, plants, decoration and the space around the intended intake and outlet. An internal filter can occupy a corner while still obstructing swimming space or access to cover.
Include the bracket, suction cups and enough access to open the flip-top lid and remove cartridges. Body dimensions alone do not describe that service movement. A neatly hidden filter is less useful if maintenance requires uprooting the layout.
The manufacturer describes vertical and horizontal positioning. That flexibility does not remove the manual’s submersion and attachment requirements. Check the instructions for the actual unit and intended orientation, especially in a shallow setup.
A product photograph does not establish safe clearance for a particular animal. Avoid narrow traps around the equipment and assess the habitat as a whole. Reconsider the layout rather than forcing the filter into the only remaining gap.
Consider the U2 A470 when its smaller body, documented mounting and adjustable outlet arrangement meet the actual aquarium need. Pass if fitting it would crowd the habitat, leave no cartridge-removal space or require the pump to operate out of water.
PRODUCT MENTIONED

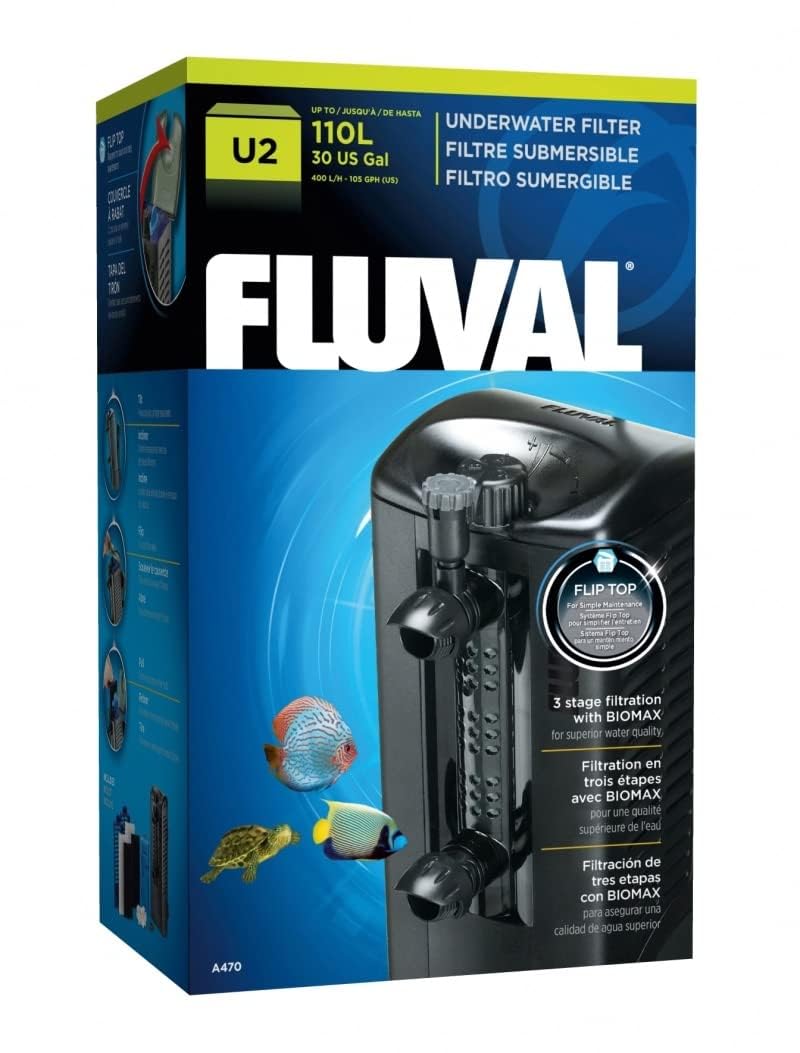

Fluval U2 Underwater Filter, A470
Amazon · Details on the retailer’s website
When the U3 is the more useful comparison
The U3’s longest stated body dimension is 27 cm, compared with the U2’s 20 cm. Its higher published pump output comes with a different physical fit and a separate US wattage. Check those changes together.
Choose around the required water movement and filtration role, not solely the tank-capacity headline. The manufacturer describes primary use in smaller aquariums and supplementary use in larger systems, but neither phrase establishes a universal biological load.
A supplementary filter still needs a clear purpose, such as an identified circulation or filtration requirement within a suitable care plan. Adding hardware without checking current patterns and maintenance capacity can simply crowd the aquarium.
Do not transfer U4 dimensions, output or consumable sizes to the U3. Similar controls within the family do not make every housing and replacement medium interchangeable.
Consider the U3 A475 when the longer body and its separate output specification are appropriate and the same installation and maintenance checks pass. Choose it for an identified need, rather than treating a higher model number as an automatic improvement.
PRODUCT MENTIONED

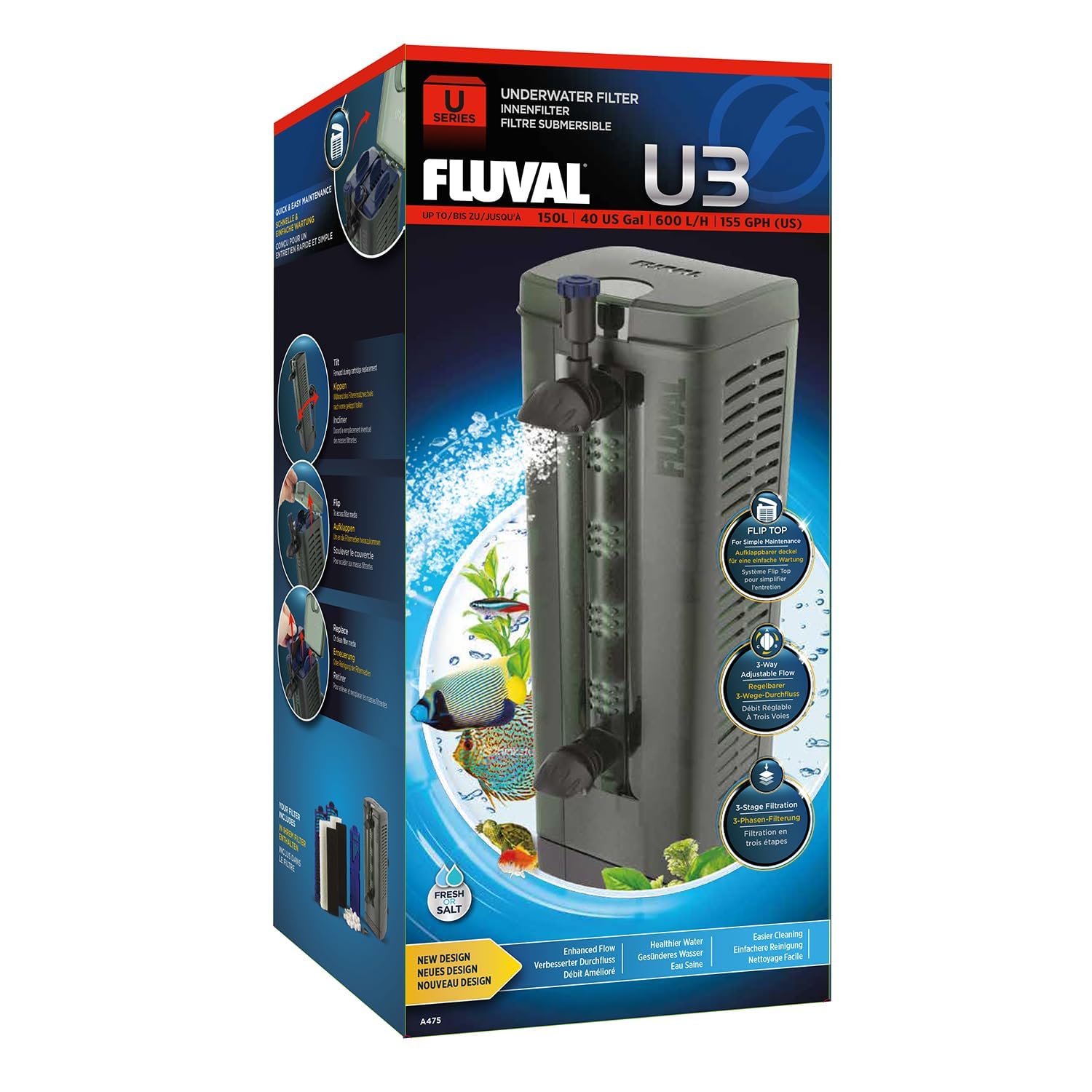

Fluval U3 Underwater Filter, A475A1
Amazon · Details on the retailer’s website
Choose Fluval U2 or U3 outlets by their job
The U Series instruction manual describes three selectable flow routes for U2, U3 and U4: top output, integrated spray bar and bottom output. The blue control adjusts flow rate and direction; this is not a promise of three unrestricted outlets operating identically at once.
Fluval describes the top route for circulation and oxygenation, the spray bar for a gentler distributed flow and the lower output for deeper agitation. Those are intended functions, not measured current or oxygen results for your tank.
Observe the actual aquarium after a permitted adjustment. Plants, hardscape and water depth change where movement occurs. More visible disturbance is not automatically better, and a quieter-looking corner is not automatically stagnant.
If animals cannot move, feed or rest comfortably in the arrangement, reassess their needs and the equipment position with suitable advice. Do not insist that the maximum setting must be correct because the filter’s gallon label matches the tank.
Fluval U2 venturi bubbles have conditions
The manual places the venturi aeration connection at the top nozzle and says venturi air is released only through the top output. The spray bar or bottom route not producing bubbles is therefore not, by itself, proof that the filter has failed.
The pump must remain completely immersed. For the described installation, the top outlet sits at least 1 cm below the water surface and the venturi, when used, stays above it. Keep those water-level relationships with the matched instructions.
Do not use bubble volume as a measurement of dissolved oxygen or biological filtration. If there is an aquarium health concern, check relevant water conditions and seek appropriate help rather than turning the air control until the display looks dramatic.
Preserve media access and established filtration
The supplied media have different functions. Foam captures material, Poly/Carbon combines mechanical and chemical roles, and BIOMAX provides a biological medium. Their being sold together does not make them one disposable part.
The maintenance section specifies rinsing established media in water removed from the aquarium, no soap or detergents and staggered media replacement. Initial preparation of new media under the setup section is a different situation from cleaning an established filter.
Keep the central cartridge accessible and avoid overpacking it with an unlisted medium. The manual warns that unsuitable media can obstruct flow or affect the impeller. A material that physically fits is not automatically compatible.
Order replacement foam and cartridges by U2 or U3 reference, not just “U Series.” Their media sizes differ. Keep the actual model and parts information with the maintenance record.
Plan Fluval U2 and U3 removal and restart
Follow the instructions to disconnect aquarium appliances before hands enter the water or parts are handled. The manual shows removing the filter from its bracket and separating the motor for permitted impeller care. Do not turn a shared family diagram into an electrical repair.
Inspect the suction cups, bracket, cable route and impeller under the matched maintenance directions. A secure attachment at first installation does not prove it will remain suitable indefinitely. Stop use and obtain the correct help for damage or unresolved abnormal operation.
After reassembly, verify the required water level, proper seating and actual return flow. Never run the pump dry or leave it outside water under power while troubleshooting. Keep the electrical rating and drip-loop requirements intact.
Replacing an established filter needs a transition plan
A new U2 or U3 does not arrive with a verified mature biological population for your aquarium. Do not discard all established media because the replacement includes fresh foam and rings.
RSPCA aquarium guidance explains the role of biological filtration and why visual clarity does not establish suitable water chemistry. Plan the transition around appropriate testing and the animals’ needs.
Keep observations and relevant test results after a significant equipment change. A higher pump output cannot establish that ammonia or nitrite is controlled, and a fixed number of days is not proof that a new filter is ready.
Questions about Fluval U2 versus U3
Is U3 always the better purchase?
No. Its longer body and higher published output need to suit the aquarium. The U2 may fit a defined need with less occupied space; neither should be chosen by model number alone.
Should every outlet make venturi bubbles?
No. The manual assigns venturi air to the top output. Follow its water-level and control instructions rather than judging the other routes by visible bubbles.
Can I use any U Series foam?
Do not assume so. Use the exact U2 or U3 replacement reference and the supplied media arrangement. The family name does not establish every cartridge’s size.
Choose the filter that fits both habitat and care
Choose Fluval U2 or U3 only after checking the actual submerged space, secure mounting, outlet behavior and removal route. Confirm the US labels and correct supplied parts before operation.
The useful upgrade is a system that suits the inhabitants and can be maintained reliably. More pump output or more bubbles cannot compensate for an unsuitable habitat or inaccessible media.
