AI-created generic aquarium-filter planning scene; not a named-model product photograph or a hands-on test.
The Fluval U4 is a practical option when you want filtration inside the aquarium rather than an external canister. Its useful features are accessible media, three outlet choices and an adjustable flow arrangement. Before choosing it, check the space it occupies, the aquarium’s actual inhabitants and the maintenance access you can provide.
The black U4 listing uses Amazon ASIN B001XRXY1G. Fluval identifies U4 as item A480. That differs from the smaller U3, item A475. A similar product name or a shared U-series manual is not permission to transfer one model’s output, body size or replacement media to another.
Fluval U4: the documented configuration
The official U4 product specification table lists a maximum aquarium rating of 65 US gallons /240 L. It separately lists pump output and regional electrical figures. Those are manufacturer specifications, not a guarantee that every aquarium up to that volume will have appropriate flow or adequate filtration for any stocking level.
| Specification | U4 information | How to use it |
|---|---|---|
| Product reference | A480; selected ASIN B001XRXY1G. | Keep the model when ordering parts. |
| Maximum aquarium rating | 65 US gal /240 L in the specification table. | Assess the animals, waste load and other filtration separately. |
| 120 V /60 Hz pump output | 260 US GPH /1000 LPH. | Do not treat nominal pump output as measured flow in your installed tank. |
| Power | 12 W for the 120 V /60 Hz version; a different regional figure is listed for 230–240 V. | Check the delivered rating label. |
| Approximate body size | 13×4×4.5 in /33×10×11 cm. | Allow room for placement and maintenance, not just the bare body. |
| Included filtration media | Foam pads, poly/carbon cartridges and BIOMAX biological media. | Prepare and maintain each component as directed. |
One feature bullet on the checked manufacturer page pairs 65 gallons with an inconsistent liter figure. The model’s table and heading give 240 L. Use the model-specific specification rather than combining a stray conversion with another U-series product’s rating.
Who should choose a Fluval U4?
The strongest fit is an aquarist who prefers internal equipment, can accommodate the body without crowding the animals and wants accessible removable media. It can also be supplementary filtration in a larger setup when the overall plan calls for it. That role depends on the tank rather than the word “supplementary” alone.
The weaker fit is a tank where the filter would dominate the swimming space, a setup that needs a different flow pattern or an owner who cannot reach the unit safely for maintenance. A physically smaller aquarium is not automatically a better match simply because it is below the maximum capacity rating.
Consider the Fluval U4 if an internal filter suits the aquarium, you have space for its body and service access, and its adjustable flow can meet the inhabitants’ needs. Pass if the only reason is a maximum gallon rating or if the filter would crowd the usable swimming area.
PRODUCT MENTIONED

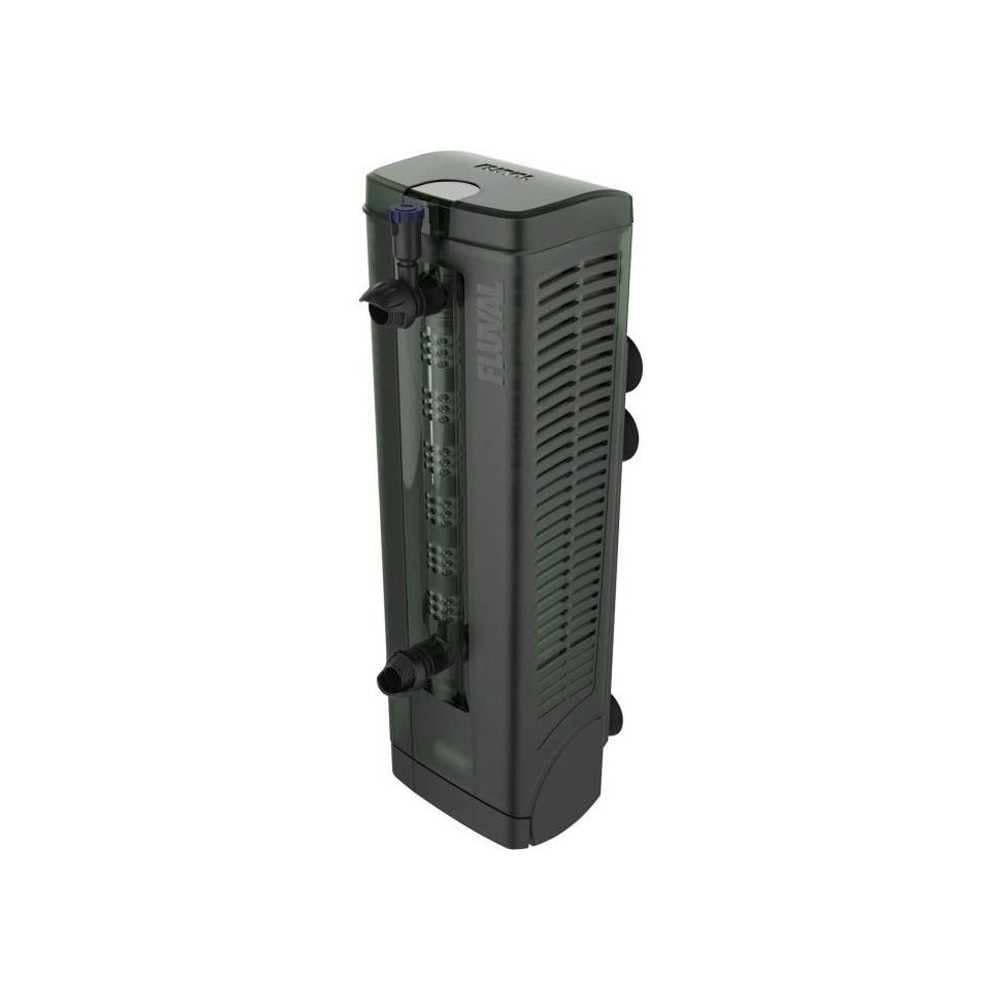

Fluval U4 Underwater Filter — A480, Black
Amazon · Details on the retailer’s website
Measure internal space and service access
Measure the usable space where the filter will sit, including hardscape, plants, water depth and the route used to remove it. The exterior aquarium dimensions do not tell you whether an internal filter can be serviced without moving important habitat features every time.
The U4’s bracket, suction cups and cable route are part of the installation. Follow the matching manufacturer instructions for orientation and water level. Do not assume that a product photograph showing a low-water arrangement means the motor can run exposed to air.
The U-series safety and installation manual requires the filter pump to remain completely immersed and says never to run it dry. It also describes positioning the top outlet below the water surface while keeping the venturi above it when used. Match the delivered model’s guide before installation.
Three outlets serve different flow choices
The manual describes a top outlet, an integrated spray bar and a bottom outlet. These are different ways to direct water movement, not three independent promises that every part of the tank receives ideal circulation. Choose the configuration for the animals and layout, then observe the result.
The top output is the documented route for the venturi’s air bubbles. The spray bar produces a gentler distributed flow, while the bottom output changes deeper-water movement. A lack of bubbles at an outlet that does not supply venturi air is not automatically a fault.
Watch the whole aquarium after an adjustment. Plants moving in one corner do not establish suitable conditions elsewhere, and a strong current is not necessarily welcome to every species. Keep the inhabitants’ needs in the decision instead of selecting the most dramatic visible flow.
Do not turn the nominal pump-output figure into an exact installed turnover calculation without acknowledging the real configuration. Media condition, placement and the flow setting affect the system you actually operate. Use observation and water-quality checks together.
Mechanical, chemical and biological media do different jobs
Foam and cartridges collect material in the water path, while the BIOMAX component provides a surface used by biological filtration. Clear-looking water alone does not tell you that the biological side is established or that the aquarium is suitable for fish.
OATA’s freshwater water-testing guidance explains why invisible waste still needs testing. A running motor, new media and a tank that looks clean are not substitutes for checking the actual water and the needs of the chosen species.
Plan maturation and stocking as part of the aquarium setup. Adding a filter to an existing tank can also change the care routine; do not discard established media or assume a new product instantly carries the biological capacity of the old arrangement. Seek appropriate aquarium guidance when changing a stocked system.
Fluval U4 maintenance: preserve useful media
Regular maintenance keeps the water path open, but cleaning everything aggressively at once can work against biological filtration. The U-series guide distinguishes media care from impeller care and warns against replacing all media together.
For established filter media, the manual says to use water removed from the aquarium and not soap or detergent. Initial preparation of new components is a different stage from cleaning established media, so read the relevant section instead of treating every rinse instruction as interchangeable.
Check the delivered guide’s maintenance schedule and the actual condition of the filter. A calendar reminder can help you remember the job, but a sudden reduction in flow or an obstruction deserves attention sooner. Do not repeatedly increase the flow setting to compensate for a dirty path.
Keep the correct replacement references available and stagger changes as directed. A cartridge for U2 or U3 may appear similar in a search result but is not established as a U4 replacement. Do not pack the unit with unrelated material if that obstructs the intended flow path.
Handle power and water as separate safety tasks
The manufacturer calls for disconnecting aquarium appliances before putting hands in the water or handling equipment. Arrange cables with the documented drip-loop precautions and keep plugs and connections dry. A waterproof submerged pump does not make every part of its electrical connection waterproof.
Do not operate damaged equipment, cut a cable or attempt an electrical repair to keep the filter running. Follow the guide and use the appropriate service or replacement route. If there is an electrical fault, protect people first and obtain qualified assistance rather than reaching into an uncertain setup.
Once a permitted maintenance task is complete, reassemble the unit correctly and confirm the specified water coverage before restoring power. Observe water movement and check the aquarium afterward. A successful restart does not establish that the water chemistry has remained suitable during an interruption.
What an internal filter will not decide for you
The U4’s capacity label cannot choose the species, the number of fish or their adult-size requirements. OATA’s freshwater setup guidance stresses species compatibility, a mature filter and a suitable environment. There is no universal fish count that follows from buying this filter.
Likewise, filtration does not remove the need for appropriate water changes, feeding control and temperature management. If the aquarium has a persistent problem, identify its cause instead of assuming a larger filter is always the answer. The purchase should fit a care plan you can maintain.
Before buying the Fluval U4
Confirm internal space, regional power, media references and the flow arrangement you want to use. Include maintenance access in the decision and check the supplied manual when the unit arrives. Those details matter more than treating the largest printed gallon figure as a performance guarantee.
If that configuration fits your aquarium, review the black Fluval U4 listing on Amazon for the selected product and included parts. Keep its actual ASIN and U4 identity when checking accessories or support.
Common questions
Is Fluval U4 the same model as A475?
No. Fluval identifies U4 as A480 and U3 as A475. Their shared family name does not make their specifications or media interchangeable.
Can the U4 pump run partly out of water?
The checked manual requires the pump to be completely immersed and says not to run it dry. Follow the delivered model’s installation and water-level instructions.
Why are there no bubbles from the spray bar?
The manual assigns venturi air to the top output. The other outlets have different water-flow roles, so bubble absence alone does not establish a malfunction.
Does a U4 make a new aquarium immediately ready for fish?
No. Equipment operation and clear water do not establish biological maturity or suitable water chemistry. Follow an appropriate maturation and testing process before stocking.
