A Litter-Robot 4 filter replacement means changing the carbon pad above the waste drawer, not replacing the globe liner or a drawer bag. Check the model, follow the LR4-specific filter-change cycle, and make sure the cover is fully seated before returning the unit to use.
Whisker recommends roughly monthly replacement, adjusted to actual use. If odor persists, inspect the drawer and cleaning condition first: a fresh filter cannot remove waste that remains in the machine.
Identify the Litter-Robot 4 filter before ordering
The relevant part is a flexible carbon pad in the filter pocket on the outer bottom of the globe. It sits above the waste drawer to help absorb odors. It is separate from the rubber surface the cat stands on and from the bag collecting waste in the drawer.
Whisker’s current carbon-filter product page lists LR4 and certain newer models, while excluding Litter-Robot 3 and 3 Connect. Do not infer that an LR3 filter or its installation location is interchangeable. Use the LR4 section of the manufacturer’s instructions for replacement.
| Item | Job and location | Buying check |
|---|---|---|
| Carbon filter pad | Odor absorption above the waste drawer | Confirmed LR4-compatible shape and package |
| Waste-drawer bag | Holds discarded litter and waste | Drawer fit; not a carbon-filter substitute |
| Globe’s rubber liner | Flexible interior surface | Separate repair identity and instructions |
For the specified replacement, check Whisker’s Litter-Robot 4 Carbon Filters, six-pack, model LR4-6000-6PK on Amazon. Choose it for a confirmed matching LR4 filter pocket; do not treat pack count or brand name alone as proof that another part fits.
PRODUCT MENTIONED

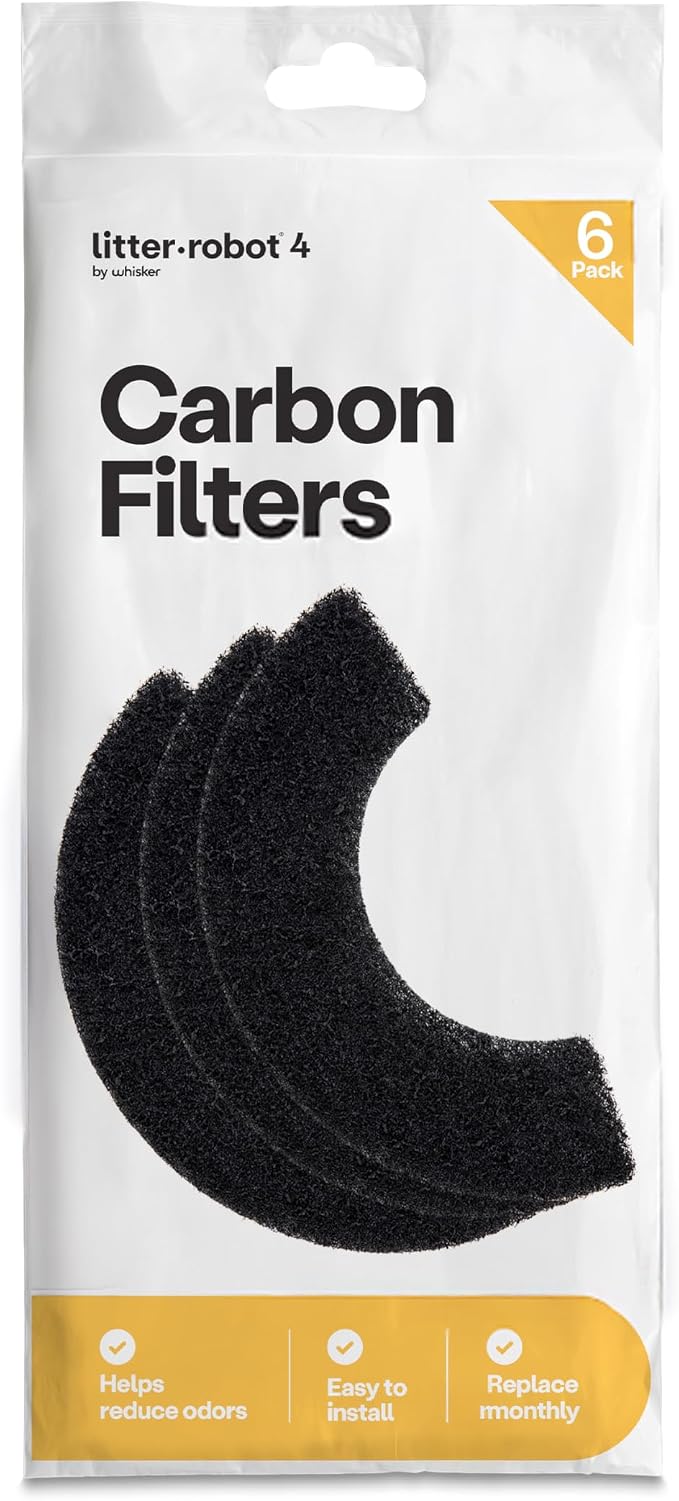

Litter-Robot 4 Carbon Filters by Whisker, 6 Pack
Amazon · Details on the retailer’s website
The six-pack is the selected retail package. It does not mean six filters go into the unit together or guarantee a six-month service period for every household. The manufacturer’s instructions and retail package details establish fit and contents; they do not establish an independently measured odor-removal result.
How often should you change the carbon pad?
Use one month as the manufacturer’s starting point, then adjust to the cats’ usage and observed condition. The product page explicitly says replacement frequency depends on usage patterns; its monthly recommendation is not a countdown to a guaranteed failure.
Keep filter care separate from waste removal. Check the drawer regularly and empty it when needed, rather than waiting for the filter date. If odor appears soon after a pad change, look for retained waste, damp residue or a cleaning issue before assuming another new pad will fix it.
A calendar reminder can help you remember the inspection, but it cannot assess odor absorption or inspect the cover. Record the date and any relevant change, such as more cats sharing the unit. There is no verified measurement that converts those observations into a precise replacement formula.
Whisker also states that the unit can function without the carbon filter. That describes operation, not proof of equivalent odor control. It is a reason to diagnose a smell or cycling problem carefully rather than assume the pad is responsible for every issue.
Litter-Robot 4 filter replacement checks and steps
Use the LR4 portion of Whisker’s current installation guide. The page covers several generations with different controls, so locate the LR4 heading. Keep cats away and never reach into a moving unit.
The complete LR4 manual describes routine carbon-pad replacement in its Carbon filter section, separately from globe-removal cleaning. The current web guide gives the dedicated filter-change controls below. Do not extend this routine procedure to repairs, globe removal or electrical cleaning; those tasks have separate power-isolation instructions.
- Start in Home position. Allow an existing cycle to finish before beginning.
- Choose the filter-change cycle. Use Controls, then Replace Filter in the Whisker app. The LR4 guide also gives the alternative of holding Cycle and Empty together for three seconds.
- Wait for the pause. The guide says the globe pauses at the replacement position. Do not open the filter pocket while it is moving.
- Open the bonnet and cover as directed. Lift and rotate the bonnet. Lift the filter-cover notch to release its snaps, then replace the carbon pad.
- Seat the cover. Fit the bottom tabs into the corresponding slots, and check that all four tabs are securely seated. Whisker warns that a partly seated cover can interrupt a cycle.
- Close the bonnet. Rotate it down and check that it latches securely.
- Return and reset. Short-press Cycle to return to Home, then short-press Reset once it is there to zero the weight sensors.
Stop if the actual controls, mounting parts or unit response differ from the matched instructions. Do not borrow the Cancel or Connect button sequence from another generation, force a damaged clip, or hold parts in place during a cycle. Ask Whisker when the unit does not pause or the cover will not sit correctly.
If smells persist, check cleaning before buying again
A carbon pad is an odor-control consumable, not a cleaning treatment. Start with the waste drawer, its bag and any residue you can safely inspect. Follow the matched instructions for cleaning parts and let washable components dry fully before reassembly.
Whisker’s LR4 deep-cleaning guide separates the washable globe and drawer from the electrical base. It explicitly says never to submerge, spray or soak the base or control panel. A general litter-box cleaning tip does not override that boundary.
The same guide advises removing the carbon filter before washing the globe. Do not assume rinsing the pad restores its odor-absorbing capacity; no reusable-washing procedure is established in the replacement instructions used.
If a cycling error begins after the replacement, first recheck the filter cover and bonnet seating against the guide. Do not remove sensors, improvise a smaller pad or force the unit to continue. Persistent faults need the manufacturer’s troubleshooting process. A new cat toileting or health problem needs veterinary attention rather than an odor-control purchase.
Frequently asked questions
Is the filter inside the LR4 waste drawer?
The LR4 carbon pad is on the outer bottom of the globe, above the drawer. The LR3 arrangement places its filter in the drawer. This difference matters when locating the part and following replacement instructions; confirm the unit model before ordering or opening anything.
Does every filter last exactly one month?
No. Whisker recommends approximately monthly changes under normal use, with frequency adjusted to usage. Check actual condition and the rest of the cleaning routine. A six-pack therefore has a pack quantity, not a guaranteed lifetime or fixed annual cost.
Can a new pad fix every litter-box smell?
No. Retained waste and residue still need removal, and washable components need appropriate cleaning and drying. A carbon pad’s odor-absorption role does not establish disinfection, health protection or a cure for every odor source. Investigate persistent changes instead of repeatedly replacing the pad.
Make the replacement part of a clear routine
A correct Litter-Robot 4 filter replacement begins with the right component and the LR4-specific instructions. Confirm the carbon pad’s identity, follow the dedicated LR4 filter-change procedure, verify cover and bonnet seating, then return to Home and reset as directed. Those checks are more useful than guessing from another generation’s buttons or filter location.
Keep the approximate monthly inspection separate from emptying waste and cleaning the machine. The selected Whisker six-pack is a practical replacement source for a matching unit, while a persistent smell or a new cycle interruption deserves an inspection before another purchase. Follow the support guide when a part does not fit or the machine does not respond as expected.
